Product Spotlights
Staubli News...
Advanced Connection Solutions for Aerospace
Staubli has been working in partnership with the aerospace industry on major international projects for over 40 years. It is recognized for its expertise and ability to supply connection solutions which perfectly meet the specific requirements of these critical sectors. We specialize in delivering the exceptional safety, light weight, compactness and cleanliness these industries demand for a range of applications such as air conditioning, breathing air, compressed air, fuel, hydraulics and thermal management.
Air Conditioning
- Split System
- Refrigerant - Fill & Drain
Electronic Systems - Liquid Cooling
Quick disconnections and reconnections of liquid circuits for easy maintenance of electronic systems.
- Liquid Cooling - Main supply
- Liquid Cooling - Cold Plate Connection
- Electrical Connections
- Rack Connection
Fuel & Airport
- Fuel Logistics
- Testing
- Airport
Power Pack & Test Benches
Connections in Confined Environment
- Fuel lines: from tank to engine and return.
- Coolant and heating lines: connections from the engine to the radiator or from the engine to the heating system can be rapidly secured.
- Hydraulic lines: braking and steering.
- Refrigerant lines: thanks to Staubli's connections, the lines from the condenser to the evaporator do not require any drainage. All these connections, applicable on ground vehicles and aircraft engines, participate actively in a quick engine change in confined environments.
- Test Benches
- Alternator Output
Staubli Aerospace/Transportation/Logistics Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
JAE News...
NEW - DW11 Series
Floating Board to board Power Connector
This product uses our unique floating structure, which are capable of 0.8mm floating tolerance in the X and Y directions. DW11 series is a connector that can be customized with the number of terminal required for a customer application. This connector series is ideal to supply power between boards, and will cater to applications in various industrial applications.
Features
- Mechanism incorporating unique floating structure
- Floating tolerance of 0.8mm in X and Y directions
- High power compatibility up to 20A and 250V
- Number of terminal pins can be adjusted according to customer requirements
Applications
- Communication equipment
- ICT applications
- Industrial equipment
- Measuring equipment
- Broadcasting equipment and various other applications
General Specifications
- Number of Contacts: 4 pos.
- Rated Current: 20 A DC
- Rated Voltage: 250 V DC
- Contact Resistance: After test - 4 milliohm MAX
- Dielectric Withstanding Voltage: 500 V AC r.m.s for 1 minute
- Connector Mating & Withdrawal Force: Mating force - 90 N MAX; Withdrawal force - 10 N MIN
- Operating Temperature Range: - 40 degrees C to + 85 degrees C
- Durability Mating Cycles: 30 times
JAE DW11 Series catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect News...
HYPER Series
Superior Performing Hypertac® Hyperboloid Contact Technology
HYPER Series offers the original superior performing hyperboloid contact technology designed for use in all applications and in harsh and demanding environments where high reliability and safety are critical. The inherent electrical and mechanical characteristics of the Hypertac® HYPERboloid conTACt ensures unrivalled performance in terms of reliability, number of mating cycles, low contact force and minimal contact resistance. The shape of the contact sleeve is formed by hyperbolically arranged contact wires, which align themselves elastically as contact lines around the pin, providing a number of linear contact paths.
Features & Benefits
Advanced hyperboloid contact technology that satisfies the most demanding performance requirements. The shape of the contact sleeve is formed by hyperbolically arranged contact wires, which align themselves elastically as contact lines around the pin, providing a number of linear contact paths. Low cost of ownership. Does not need replacement during equipment life.
Features
- Low insertion/extraction forces
- Long contact life
- Lower contact resistance
- High current ratings
- Immunity to shock and vibration
Benefits
- High density interconnect systems
- Low cost of ownership
- Low power consumption
- Maximum contact performance
- Reliability under harsh environments
Contact Sizes
The HYPER Series catalogue offers 26 hyperboloid sockets and 25 pins in 14 different pin dimensions, from 0.4mm diameter for signal contacts to 6.12 mm for high currents, with different termination types (crimp, solder cup, straight, open both ends and closed end) and platings.
HYPER Series catalogue
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect News...

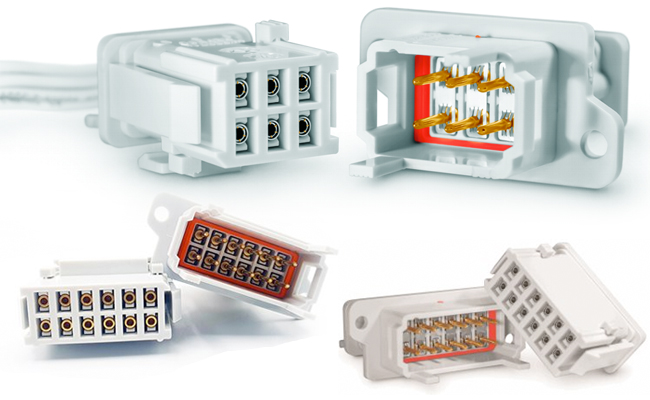

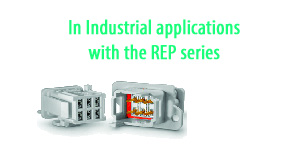

REP Series
Environmentally-sealed plastic connector
REP series is easy to use for quick mating. The REP panel and cable connectors are a highly cost-effective interconnect system, which solves the constant need for simple and reliable connector solutions in rail applications. A full plastic solution offered in either wire attachment or PCB mounting options to provide rapid assembly installation without requiring additional mounting hardware. Cable receptacle connectors are available to mate with the cable plug connectors for cable-to- cable solutions when needed. The series is qualified to French and European rail standards. The connectors are available as one overmolded plastic part to save assembly time.
Features & Benefits
- C o n f o r m s t o m a i n r a i l s t a n d a r d s : E N 4 5 5 4 5 , E N 5 0 1 2 4
- 2 , 6 a n d 1 2 w a y s t a n d a r d i n s u l a t o r s
- O r i g i n a l H y p e r t a c ® h y p e r b o l o i d c o n t a c t ( u p t o 2 0 , 0 0 0 m a t i n g c y c l e s ) a n d M R c o n t a c t t e c h n o l o g i e s ( u p t o 5 0 0 m a t i n g c y c l e s )
- C r i m p , s t r a i g h t o r b e n t t e r m i n a t i o n o p t i o n s
- S m a r t d e s i g n w i t h i n t e g r a t e d f u n c t i o n s
- C o n f o r m s t o m a i n r a i l s t a n d a r d s
- A l l o w s w i r e s e c t i o n s f r o m 0 . 5 m m 2 t o 2 . 5 2 m 2 ( 2 0 - 1 3 A W G ) w i t h h y p e r b o l o i d c o n t a c t a n d w i r e s e c t i o n s f r o m 0 . 7 5 m m 2 t o 2 . 5 2 m 2 ( 1 8 - 1 3 A W G ) w i t h M R c o n t a c t
- S h u n t s a v a i l a b l e a s r e q u i r e d
Overview
S m i t h s I n t e r c o n n e c t s R E P s e r i e s m u l t i p o l e , s e a l e d , p l a s t i c c o n n e c t o r s , p r o v i d e a q u i c k a n d s e c u r e c o n n e c t i o n o f e m b e d d e d e q u i p m e n t a c r o s s a w i d e r a n g e o f a p p l i c a t i o n s ; s u c h a s s e n s o r s , b r a k e s , l i g h t i n g , a i r c o n d i t i o n i n g , a n d c o m m u n i c a t i o n s , i n t h e i n d u s t r i a l , r a i l , t e s t a n d m e a s u r e m e n t , a u t o m o t i v e , p u b l i c w o r k s , a n d d e f e n s e i n d u s t r i e s . T h e c o n n e c t o r i s a v a i l a b l e w i t h t h e p r o v e n H y p e r t a c h y p e r b o l o i d c o n t a c t t e c h n o l o g y w h i c h g u a r a n t e e s e x c e l l e n t r e l i a b i l i t y , e v e n u n d e r h i g h l e v e l s o f s h o c k a n d v i b r a t i o n a n d a l l o w s u p t o 2 0 , 0 0 0 m a t i n g c y c l e s a n d h i g h c u r r e n t r a t i n g u p t o 1 8 A . R E P c o n n e c t o r s a r e a l s o a v a i l a b l e i n t h e E a s y R E P v e r s i o n , u s i n g M R s c r e w m a c h i n e d c o n t a c t s a n d a l l o w i n g u p t o 5 0 0 m a t i n g c y c l e s .
T h e R E P c o n n e c t o r r a n g e o f f e r s t w o m a i n v e r s i o n s : w i t h c r i m p t e r m i n a t i o n c o n t a c t s f o r c a b l e h a r n e s s a p p l i c a t i o n s a n d w i t h s t r a i g h t o r b e n t t e r m i n a t i o n c o n t a c t s f o r P C B m o u n t a p p l i c a t i o n s . B o t h v e r s i o n s a r e a v a i l a b l e i n 3 l a y o u t s : 2 , 6 a n d 1 2 w a y s . T h e R E P S e r i e s c o m e s w i t h a s h u n t a c c e s s o r y e n a b l i n g e l e c t r i c a l d e r i v a t i o n i n s i d e t h e c o n n e c t o r f o r t r a n s m i s s i o n o f i n f o r m a t i o n t o d i f f e r e n t l o c a t i o n s . J u s t o n e c o n t a c t i s n e e d e d f o r c a b l e s w i t h c r o s s s e c t i o n s f r o m 0 . 5 m m 2 t o 2 . 5 m m 2 ( 2 0 - 1 3 A W G ) p e r t h e N F F 6 3 - 8 0 8 a n d E N 5 0 - 3 0 6 s t a n d a r d s . N o s p e c i a l i z e d t o o l i n g i s r e q u i r e d f o r m o u n t i n g , w i t h c o n s e q u e n t r e d u c t i o n o f s u p p l y c h a i n , m a i n t e n a n c e a n d c a b l i n g c o s t s .
F u r t h e r m o r e , f o r e a s y m o u n t i n g , t h e c o n n e c t o r i n c l u d e s p o l a r i z e d g u i d e s a n d p r o v i d e s s e v e r a l c o n f i g u r a t i o n s : c a b l e t o c a b l e , c l i p s , f r o n t a n d b a c k p a n e l m o u n t . C o n n e c t o r s a r e a v a i l a b l e f o r d e l i v e r y a s a c o m p l e t e , t e s t e d p r e - c a b l e d s o l u t i o n a c c o r d i n g t o c u s t o m e r s ' s p e c i f i c a t i o n s .
Smiths REP Series Catalog
Smiths REP V1 Installation Instructions
Contact our Sales Department for techinical assistance and more information.
back to the top
Fischer News...

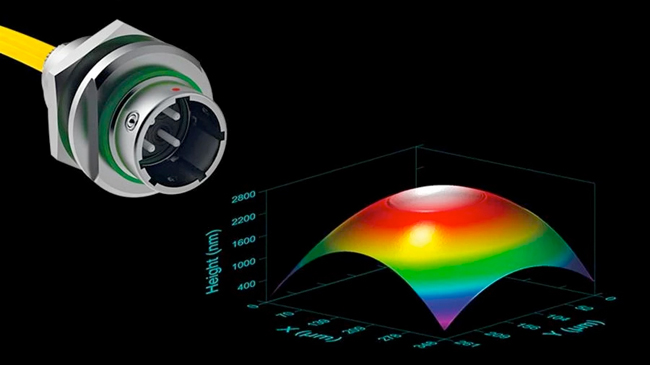

Fischer FiberOptic Series: ROBUST | OPTICAL PERFORMANCE | EASY CLEANING
With its miniature, circular, push-pull design, the Fischer FiberOptic Series enables device design for all sorts of indoor and outdoor environments - from defense, security, medical, and instrumentation, to robotics and Test & Measurement applications. Fischer FiberOptic solutions feature butt-joint optical contacts for high optical performances (0.2 dB/connection) with optimal design enabling precise lateral alignment and reduced insertion loss; single mode for long-distance applications (around 120 km) and in multimode for short-distance runs (3-5 km); multi-mode with UPC polishing (ultra physical contact); single mode with UPC and 8" APC polishing (angled physical contact) for ultra-low back reflection optimizing return loss.
Tested for harsh and extreme environments according to Norm IEC 61753-1 Cat. E, these fiber-optic cabled connectors are unbreakable by hand, sealed up to IP68 mated (IP67 unmated) -2m/24h and -300 m (1,000 ft) for the single fiber optic connector, have gas-tight panel receptacles (<10-6 mbar l/s), and resist corrosion (1,000 hours of salt mist, Brass Ni-Cr plated) and operating temperatures from -40oC to +85oC. Easy cleaning (with water), maintenance, and replacement are made possible with the ergonomic and user-friendly push-pull design, featuring ball-locking mating with 'click' proof, and a monoblock removable sleeve holder that supports in-field end-face cleaning and provides easy access to ferrules.
KEY FEATURES
Best Performances
- Butt-joint for high optical performances
- 8o APC polishing to reduce return loss
- IP68 sealing to 2m/24h mated (IP67 unmated)
- Gas-tight panel receptacles (<10-6 mbar l/s)
- High corrosion resistance (up to 1,000 hours of salt mist)
- Operating temperatures from -40oC to +85oC
- Convenient cleaning in the field
- Single-mode and multimode versions
- UPC and APC polishing
- 1 to 4 optical channels
- Hybrid versions
- Push-pull locking with "click" proof
Contact our Sales Department for techinical assistance and more information.
back to the top
JAE News...
New Release: KW07C Series CHAdeMO Standard EV Charging Connector with Improved Handling at 200A Rated Current
What's NEW No.22
The installation of EV (electric vehicle) fast-charging infrastructure is being facilitated all over the world, with an ever-increasing demand for high current EV charging connectors. The charging connectors with higher charging capacity typically require larger and heavier cables, which make them difficult to handle. For this reason, JAE developed the KW07C Series, that comes with superior ease of handling while accommodating a capacity for 200 A of current.
FEATURES
- CHAdeMO standard Compliant
- UL Recognized
- Highly reliable design using materials with high environmental durability
- Lightweight composition with a compact and durable design
- Compatible with high output (90 kW grade) charging systems
Contact our Sales Department for techinical assistance and more information.
back to the top
Staubli News...

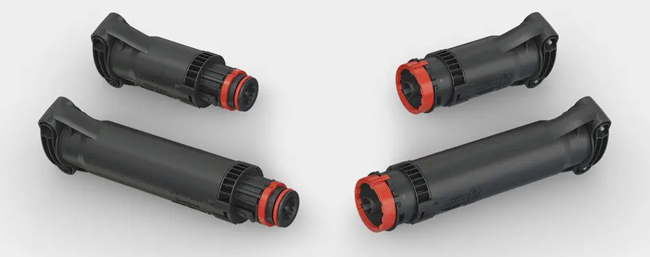

Product Launch: MC4 Test Leads and Connectors rated at 1500V DC
Staubli is pleased to announce the launch of the new MC4 adapter test leads and MC4 test connectors. The new test accessories are rated at 1500 V DC and certified to standards UL/IEC 61010-031 and CSA C22.2 No. 61010-031. They are equipped with gold-plated barrel crimp contacts to allow for precise measurements and up to 1000 mating cycles.

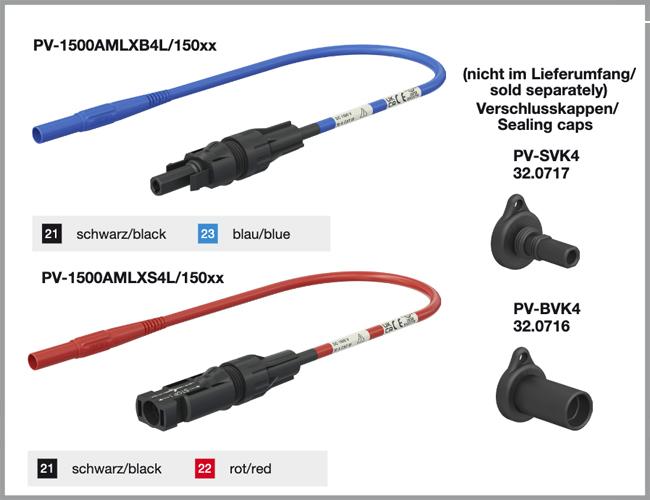

Staubli's MC4 adapter test leads PV-1500AMLXB/150 and PV-1500AMLXS/150 are rated at 30 A.
The updated MC4 test connectors PV-KBT4/...-P...AU and PV-KST4/...-P...AU are available with and without locking features. Cable with cross-sections from 14 AWG to 8 AWG can be connected and allow current ratings up to 70 A (UL).
For more information, please check out the new Adapter Leads and Test Connectors flyer.
Technical information can be found in Assembly Instructions MA712 for the MC4 adapter test leads and Assembly Instructions MA717 for the MC4 test connectors.
Staubli's 1000 V DC MC4 adapter leads and connectors (part numbers 32.1198-..., 32.1199-..., 32.0044, 32.0045) are still available. We will inform you when a timeline for discontinuation has been finalized.
Contact our Sales Department for techinical assistance and more information.
back to the top
Omnetics News...

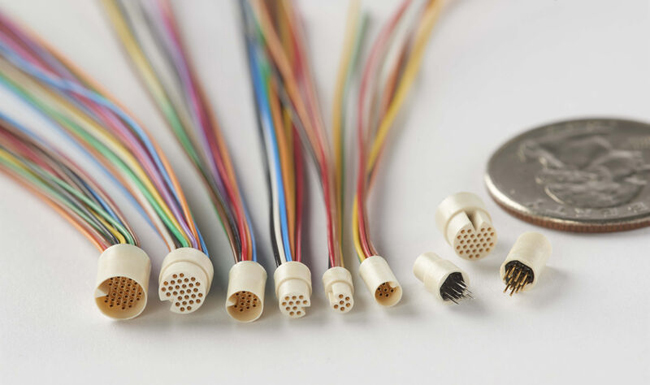

Nano 360® Circular Connectors

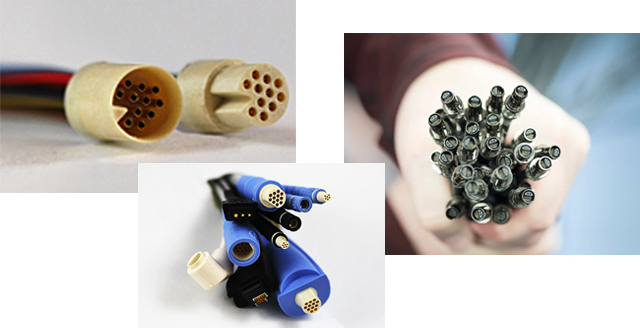

Omnetics' Nano Circular Connector Series utilizes Omnetics' rugged and reliable Flex-Pin contact system, is spaced on 25 mil (.64mm) centerlines, has a 9.0 mm mated length, and is specified to MIL-DTL-32139. These ultra-miniature circular connectors are ideal for industries that require small and durable performance.At .025" pitch, Omnetics Nano 360® Circular connectors are the smallest mil-aero circular connectors on the market. Compared to larger circular configurations, we have reduced the size and weight by as much as 3x compared to standard .050" pitch circular connectors. Omnetics Nano 360® Circular connectors offer a number of standard designs and locking methods with pin counts ranging from 2 to 39 positions. The unique polarized-insulator allow for both plastic and metal shell connector design styles. Threaded couplings, metal and plastic breakaway shells and twist-lock housings are ready for both inline as well as panel mount interconnections. Thirty-two gauge standard Teflon insulated copper wire is also offered from stock that handles nearly 1 ampere of current per contact.
Nano 360® Plastic Circulars - Straight
Spaced on 25 mil (.64mm) centerlines and a 9.0 mm mated length, these connectors are the smallest Mil-Quality circulars available today. Extremely small outer diameters range from .122" (3.1 mm) to .217" (5.5 mm). With the ability to withstand high shock and vibration while maintaining their electrical integrity, these connectors are ideal for the most demanding applications. Gold plated contacts are polarized and shrouded by our unique Liquid Crystal Polymer housing, making these connectors capable of over 2,000 mating cycles. 6, 11, 16 & 28 positions housing sizes are available in pre-wired and solid straight tail versions.
Nano 360® Circulars Threaded Panel Mount - Wired/Cable
Omnetics nano series of circular connectors are now available with threaded metal housings giving them a positive lock and environmental seal. These are the smallest Mil-Quality circulars available today. With the ability to withstand high shock and vibrations while maintaining electrical integrity, they are ideal for the most demanding applications where size and weight are critical. These connectors can be configured with different levels of waterproof sealing up to IP-68. A variety of shell material and finishes are available including nickel plated brass and back oxide stainless steel.
These high density multi-position connectors are available in four shell sizes: 6, 11, 16 & 28 positions arranged on a .025" (.64 mm) pitch and are capable of 1 amp per contact. Utilizing a military quality contact system, these connectors are perfect for mission critical applications where size, weight and reliability are crucial.
Nano 360® Circulars Twist Lock Panel Mount - Discrete Wired/Cable (TYPE WD/WC)
Omnetics Nano series of circular connectors are now available with metal housings giving them a environmental seal. They have ability to withstand high shock and vibrations while maintaining electrical integrity. A variety of shell material and finishes are available. Sizes available 05, 12, 16 & 27.Wire Terminations available with Discrete wire and Cable.
Nano 360® Circulars Break Away Panel Mount - Discrete Wire/Cable
Omnetics nano series of circular connectors are now available in a break away configuration. These connectors are the smallest Mil-Quality circulars available today. With the ability to withstand high shock and vibrations while maintaining electrical integrity, the break away feature is ideal for the most demanding applications where size and ruggedness are valued. Designed with an extra retention spring, these connectors are engineered to release (break away) at a pre-determined force. These connectors are also available with added waterproof sealing up to IP-68 for the mated pair.
These high density multi-position connectors are available in sizes from 2-28 positions and have contacts arranged on a .025" (.64 mm) pitch. Utilizing a military quality contact system these connectors are ideal for applications where size, weight, and overall reliability are critical.
Omnetics Nano 360® Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect News...

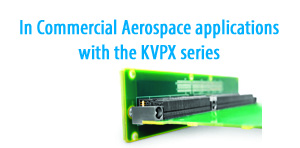

KVPX Series - Space-Qualified, Rugged, High-Speed, VITA Backplane Connectors

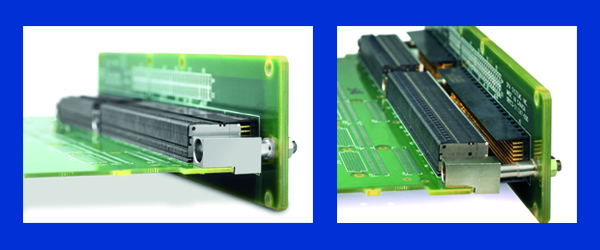

KVPX Series is an embedded interconnect system that provides unrivaled performance in harsh environments while adapting to the VITA standard design requirements. KVPX Series is a shielded, high-density, high-speed, modular interconnect system optimized for differential pair architectures on a 1.8mm x 1.35mm grid. VPX (Virtual Path Cross-Connect, also known as VITA 46, refers to a set of standards for connecting components of a computer (known as a computer bus), commonly used by defense contractors.

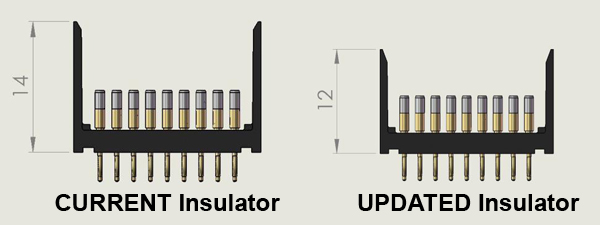

Features & Benefits
- High Speed up to 16 Gbps
- Compatible with VITA 46, 47 and 78 (Space) standards
- Flexible modular design for standard 3U and 6U as well as custom configurations
- Faceplate to protect daughtercard pins; press-fit termination
Overview
The waferized daughter-card assembly also provides single-ended and power wafer options. The backplane modules are available in 8 and 16 row increments on a 1.8mm x 1.8mm grid, with user-configurable keying and integrated stainless steel guide pin/keys.
The KVPX connector platform offers the ability to scale from 80 Mbps to over 10 Gbps while retaining the same Vita 46 backplane slot pitch at 20.3mm to 25.4mm. KVPX backplane connectors utilize 0.4mm Hypertac hyperboloid space qualified sockets, known to provide immunity to shock and vibration fretting, numerous linear paths of contact, low-forces, high mating cycles, and a self-wiping cleaning action that results in consistently better integrity in extreme environments. The KVPX daughtercard connectors incorporate a front face plate which prevents damage to the male contacts in an unmated condition. KVPX is best suited and positioned for data intensive applications where high throughput and high computes are the critical factors. Intelligence, Surveillance & Reconnaissance (ISR), Signals Intelligence (SIGINT), radar applications and Electronic Counter Measures (ECM).
Smiths KVPX Series Brochure
Smiths KVPX Series Application Notes
Contact our Sales Department for techinical assistance and more information.
back to the top
Conec News...

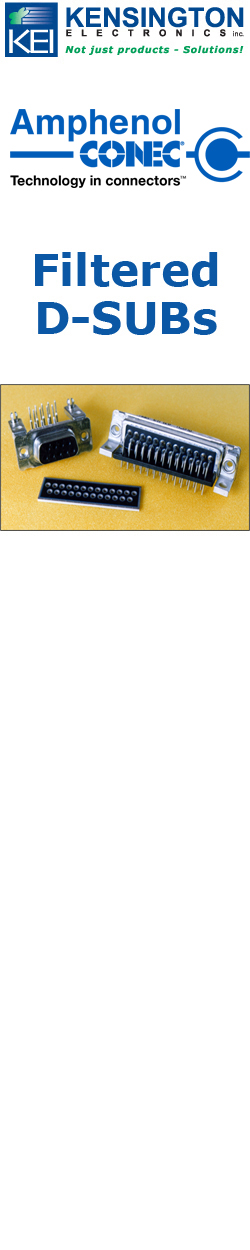

Filtered D-SUBs from Conec
Electromagnetic interference (EMI) is a disturbance generated by an external source that harms electrical circuits. Conec's filtered connectors mange interference at the signal and power IO. Although they were invented in 1952, the D-SUB is still widely used today. Conec offers both standard filtered D-SUBs, filtered high density D-SUBs, and filtered combination D-SUBs where applications call for power and signal. Conec offers filters in C, LC, and pi filters.
What are filters and what do they do?
C filters are a capacitor-input filter circuit in which the first element is a capacitor connected in parallel with the output of the rectifier in a linear power supply.
LC filters consist of a combination of inductors (L) and capacitors (C) to cut or pass specific frequency bands of an electric signal.
Pi filters will have multiple combinations of component values that all produce the impedance necessary for the given frequency. Pi filters are considered to be more efficient. The Pi filter will also produce a high output voltage with minimal current drain, producing only a very small voltage drop at the output.
Conec, An Amphenol Company, D-SUB Catalog
Applications include: high reliability (military/aerospace), telecom and medical.
Contact our Sales Department for techinical assistance and more information.
back to the top
JAE News...
INDUSTRY'S SMALLEST MATING HEIGHT...
Smartwatches and other highly functional small wearable devices are becoming smaller and thinner. As there will be more sophisticated devices in the market, the density of components on circuit boards will also increase, and connectors will need to be lower profile and have a smaller footprint.
 |
The new WP55DK Series with the industry's smallest in class mating height, is a compact board-to-board (FPC) connector with power terminals. It has an extremely low profile 0.5mm mated height, 0.3mm pitch between terminals, and 1.6mm connector width. It is ideal for small wearable devices such as smart watches and smart glasses. |
Special Features
- Industry's smallest mating height of 0.5mm
- 2 rows, 0.3mm pitch, 1.6mm width
- Two power supply terminals capable of carrying 3 A of power (also used as hold-down)
- Robust hold-down structure protects mating surfaces and prevents damage to the insulator
- Robust construction with metal fittings to prevent damage to the internal surfaces of the insulator when mating.
- Good workability due to click feeling when mated
- Proven two-point contact structure with high contact reliability
- Ni barrier on contacts to prevent solder wicking
 |
Applicable Markets
|
JAE WP55DK CATALOG
Contact our Sales Department for techinical assistance and more information.
back to the top
JAE News...
IP67 WATER AND DUST-PROOF CIRCULAR CONNECTOR BY JAE
New Variation of JL10/W Series Base stations currently serve critical roles in the proliferation of 5G communication services and are commonly installed outdoors, usually in high places. Because of this, connectors that are used in base stations must be resilient in the outdoor environment, require effortless operation, and offer secure mating. In response to field feedback, JAE equipped the JL10/W Series with high mating and unmating capabilities for use in equipment installed outdoors.
The JL10/W Series connectors are IP67 rated waterproof and dustproof, and use weather resistant resin for high environmental durability. The connectors feature outstanding ease of operation and allows for reliable mating with a one-touch locking mechanism mating method. In addition to the conventional contact pin arrangement (22-22) we have added a variation with a new contact pin arrangement (22-A3).
Features
- IP67 water and dust-proof with excellent environmental performance (including corrosion resistance) for outdoor use
- Secure mating with a bayonet lock system providing superior operability and efficiency (less screw tightening and no need for torque management
- Mating assurance confirmation through aligned guide marks (white arrows) on the plugs and receptacles
General Specifications
Catalog
Product Information
Contact our Contact Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect News...
Agile Product Development through Flexible Connectors
Highly configurable Spring Probes Connector
The field of specialized high-reliability electronics - unique devices for military, medical, and industrial applications - is defined by its demand for the very agile deployment of performance. Customers in these markets require flawless products quickly, leaving the companies who serve them feeling as if they are sprinting down a tightrope. The Dovetail Connector Series from Smiths Interconnect provides the traction needed to fulfill these expectations. Dovetail Connector Series features C Series Spring Probes, renowned for their incomparable shock and vibration performance, housed in a patented block design.
Features & Benefits
- Custom configurations
- Mixed functionality within single connector
- Immediate delivery
- Reliable in shock and vibration environments
- IDI Spring Probe technology
Overview
Available with two compressed heights, 4 mm and 6 mm, the symmetrical blocks interlock to allow for simple configuration into any imaginable X-Y pattern. A multitude of probe options permit the benefits of a custom connector design such as intermixing of power and ground functions within the same array. Dovetail connectors, because of their configurable nature, allow designers to solve problems with an innovative contact technology packaged in a field-configurable, commercial-off-the-shelf (COTS) solution - instantly, easily, and securely. Available for immediate delivery with no tooling required, the Dovetail Connector eliminates the time and expense associated with typical prototype and low to medium volume manufacturing activities.
WHITE PAPER
Solder Pad Layout User Guide
Dovetail Test Report
C Series Dovetail Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
Omnetics News...

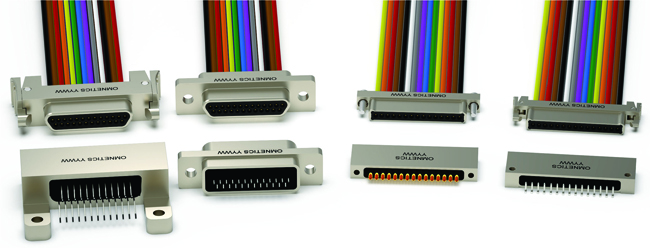

Micro-D & Nano-D Connectors for Military & Aerospace
Micro-D connectors are emerging as the most often selected for cable interconnections in today's evolution of miniaturization.The need for ruggedized, miniature connectors that can enable quickly-changed modules, instruments, or even sensors and probes is becoming a norm.
The older micro-d connector is still extensively used as a standard in many existing designs and has established heritage with experienced designers in the industry. As new electronic technology and methods evolve, we see higher demand for module and component interchangeability. Often the change process must occur in the field or away from a technical bench. The existing military standards specify the micro-d connector size and format to ensure reliability and inter-mate capability from brand to brand.
The current problem: The current connectors require hand tools to lock and unlock the jack-screws that hold the mated pair in place.
The solution: Omnetics new Latching Micro-D connectors have been built onto the same placement as the old jack-screws but offer quick connection without any extra tools. Omnetics Micro-D subminiature connectors are QPL qualified and designed and manufactured to meet and exceed MIL-DTL-83513. The connector assembly is built to assure the highest performance through high shock and vibration applications as well as extreme environmental use. They use the proven beryllium copper spring pin to socket contact system plated with both nickel and gold that assures the highest quality for mating and de-mating and very low contact resistance. Pin and sockets are set at .050" center to center lines. The standard and COTs models are available in pin counts from 9 through 51 positions and come available in solder cup and wired as well as board mount configurations. The collection of Micro-D connectors also includes special high temperature versions, deep space versions with NASA qualified low outgassing, as well as mixed signal designs fabricated to match your application directly.
Defense Advancement Article
Omnetics Micro-D Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
Fischer News...
Industry 4.0: Welcome to the Fourth Industrial Revolution
Inexpensive sensors, fast networks, industrial globalization, and software advances including AI and machine learning have created an environment where factories, supply chains, workers, consumers, and investors can be connected everywhere, all the time.Industry 4.0, propelled by the Industrial Internet of Things (IIoT), is transforming business by embracing connectivity. IIoT connects the full scope of business operations using internet technology to link machines, workers, and corporate systems with a goal of accelerating operations, improving quality, and boosting financial performance. New technologies and components, including affordable processors and sensors that provide real-time access to information, along with advancements in network connectivity and artificial intelligence, are increasing capabilities and reducing costs.
Three challenges related to increased connectivity stand between today's business architectures and the Industry 4.0 future. These challenges are defeating cyberattacks and security breaches, integrating global supply chains, and fully implementing the capabilities of high-performance networks.
Cybersecurity
Malicious actors are already looking for ways to hack Industry 4.0 operations, and a series of early attacks on manufacturing and infrastructure demonstrate the scope of risks connected networks face. Security practices designed for minimally networked systems rely on isolation and local access controls. Those practices are fundamentally inadequate when industrial systems are connected through industrial connectivity protocols such as SCADA (Supervisory Control and Data Acquisition) that gather and analyze real-time data to monitor and control the activities of equipment. Without constant surveillance and network security practices that constantly evolve to stay ahead of potential attacks, Industry 4.0 solutions can open networks to potential interference.
Building security into Industry 4.0 solutions is essential to address the vulnerabilities created by increased connectivity. Because suppliers and partners are closely integrated within an Industry 4.0 solution, IoT-related vendors (hardware and software vendors, service providers, consultants, and others) must be integrated into security plans. Most Industry 4.0 transformations include actions to align with U.S. or international cybersecurity standards such as NIST SP 800-53 or ISO 27001.
Fischer Connectors designs, manufactures, and distributes rugged connectors and cable assemblies particularly suitable for applications requiring faultless precision, durability and resistance to extreme conditions. They can now combine SPE's unique features with their renowned high-reliability, high-performance, sealed connectors to take SPE connectivity to new heights and markets.
CONTINUE READING COMPLETE ARTICLE

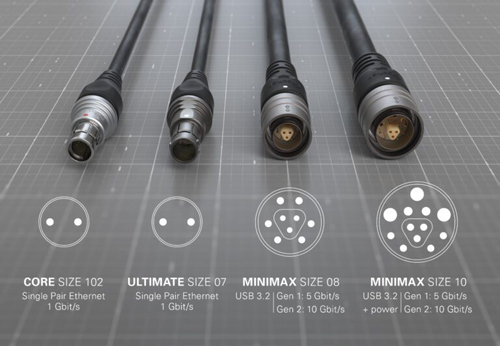

Fischer Single Pair Ethernet Connectivity Solutions Flyer
WHITE PAPER
Contact our Sales Department for techinical assistance and more information.
back to the top
Omnetics News...

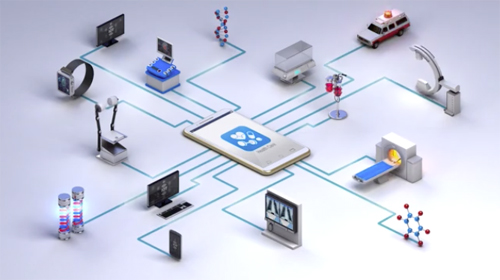

MICRO 360® & NANO 360® Circular Connectors
Wearable, mobile and all other medical devices continue to get smaller but the need for high-reliability remains a constant. Are the connectors you are using keeping up with the times?
Omnetics is a world-class miniature connector design and manufacturing company with over 30 years of experience, focused on Micro-miniature and Nano-miniature highly reliable electronic connectors and interconnection systems. All Omnetics connectors are designed and assembled in a single location at their plant in Minneapolis, Minnesota.
Circular Connector Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
KEL News...
KEL's USLS Series
Computer peripherals are the devices you use to expand your system's functionality and may not be essential for the computers to work but the interference connections may cause can be a real problem.KEL's USLS Series is a low profile, stack mating type micro coaxial cable connector. The board side connector is surrounded by a metal shell to improve noise reduction. Overall, the connector has a 1.65mm stacking height.
Compact Connector with 1.65 mm Stack Height
- In addition to stack mating, bulk pressure welding improves connection reliability and makes it more compact.
- It has an effective mating length of 0.35 mm, a low profile of 1.65 mm stack height, and a 3.05 mm mating width. Applicable for high-density printed circuit boards.
- The cable harness can be passed through thin tube of 4mm diameter.
- Available with 20, 30, or 40 positions
- Lead-free product
Stack Mating Type - Easy Positioning and Excellent Workability during Mating
- Stack Mating Type
- Easy Positioning and Excellent Workability during Mating
- In our USLS series, the common problem of positioning for stack mating type connectors has been resolved with our advanced technology.
- Stack mating provides superior workability.
Imaging
- Improved Product Strength, Transmission Characteristics, Noise Reduction
- The board-side connector is surrounded by a metal shell to improve noise reduction, product strength, and to strengthen grounding.
- Ground terminals are provided at multiple points to improve transmission and EMS characteristics.
- A nickel barrier is placed on the board-side contact to prevent the solder from lifting.
CATALOG
Contact our Sales Department for techinical assistance and more information.
back to the top
JAE News...
All Plastic, Low Profile, Waterproof Connectors
JAE has developed the JN13 Series, an all-plastic, low-profile connector that is ideal for compact servomotors with metal housings. By combining the power and signals for the brake in a single connector, it allows for space saving and a reduction in the number of cables.Robots and machine tools are constantly being designed to be smaller and more functional and the space allocated for connectors on servo motors are becoming less and less. There is also a demand for fewer cables to be used in these servo motors. In response to these design requirements the JN13 Series reduced the number of connectors and cables by combining 6 positions (3 power, 1 ground, 2 brake) into a single connector. Reinforced insulation is provided between the power and brake signal lines so they can be used safely in a single connector.
CATALOG
FEATURES
- An all-plastic connector to reduce weight and cost.
- Low-profile screw-fastened mating method for secure mating, withstanding vibration and creating a reliable seal.
- IP67 rated waterproof structure in mated condition.
- The 6-postion connector combines power and brake with reinforced insulation.
- Screw for mating doubles as ground connection to the metal servo motor housing.
- Crimp termination contacts.
- Plug hood with 180o selectable cable exit orientation based on application requirement.
Contact our Sales Department for techinical assistance and more information.
back to the top
LEDtronics News...
New Tunable LED Linear High Bay Luminaires for versatile lighting solutions from LEDtronics.
The ideal solution for: Parking Areas & Garages, Production Areas, Warehouse & Workshop Lighting, Tunnels & Bridges, Canopies, Stairwells, Food Processing Facilities, and more.- 5-Year LEDtronics Warranty
- ETL Listed
- Title 24 Compliant
- Tunable: Selection of 3500K Medium White, 4000K Natural White, 5000K Pure White
- Selection of 15 Watts, 20 Watts, or 25 Watts
- Nine stock keeping units in one luminaire saves inventory
- Integrated design: LED plate bonded to PC cover
- Easier installation. Timely wiring saves time.
- Advanced housing slot designs for surface mounting or junction box bracket cover.
- Tamperproof mounting installation options.
- Lumen maintenance over 70% @ 50,000+ hours
- Operates on 120~277VAC
- Lightweight, flexible & durable polycarbonate housing provides resistance to vandalism, high impact & shock
- Stainless steel mounting hardware for wall, ceiling or suspended mounting
- Silicon gasket, closure clips securely, evenly seals luminaire
- PC diffuser eliminates glare - Integrated with crystals that enhance even light distribution / No buzzing, No flickering
- No UV/IR radiation, No RF interference
- RoHS compliant - No toxic mercury
- See instructions for daisy-chain maximums
- 30+ Years LEDtronics Design & Manufacturing
View the Brochure
Contact our Sales Department for techinical assistance and more information.
back to the top
Staubli Electrical Connectors News...
Plug Into More Possibilities
Staubli's CombiTac direqt Modular Connector series provides high-quality, long-lasting modular connectors for power, signal, and pneumatic connections up to 10,000 mating cycles. The CombiTac direqt click-and-connect system allows for fast, easy assembly without the use of tools. These connection systems offer significant economic advantages and are ideal for a wide array of industrial applications.- Signal, power, and pneumatic connections
- Housing and panel mount versions
- Tool-free assembly
- High safety features
- Short lead times
- Cost-effective
- Guaranteed 10,000 mating cycles
Configuration of modular connectors made smart & easy
The automation app, award-winning CombiTac configurator from Staubli Electrical Connectors is the most intuitive modular connector configurator available today. Accessible through every end device, it enables you to quickly and easily build your own personalized CombiTac step-by-step, and offers 3D interactive graphical assistance throughout the configuration process.
CombiTac direqt Main Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
CONEC News...
CONEC IP67 Power Bayonet Connectors
CONEC IP67 Power Bayonet Connectors offer a quick, simple, and robust connection in harsh environments. The connectors with bayonet locking are designed for industrial cable connections with IP67 protection. A 2- and 3-position versions are available. The 2-position components are mainly designed for DC use up to 48VDC maximum. The 3-position connectors feature a premating contact for AC up to 250VAC maximum with a protective earth contact (PE). The shape and panel cut-outs accommodate the existing IP67 series for RJ45, USB 2.0, and Fiber Optic LC Duplex.Features
- Easy and safe bayonet locking
- High current carrying capability
- Cable-to-cable connection
- Cable-to-receptacle connection
- Protective cap with tether available
Applications
- Automation systems
- Industrial process control
- Communications equipment
- Diagnostic equipment
- Outdoor telecommunications systems
- Use in harsh environments
Check out CONEC IP67 Power Bayonet Connectors on YouTube:
Related Products
Data communication is also required in outdoor applications.
Whether in traffic engineering, in maritime environments or in mobile phone applications, long transmission distances and impacts such as heat, rain, snow, salty mist and dust place high demands on all connectors. The IP67 connectors developed by CONEC provide reliable protection against environmental influences and mechanical stress. The broad portfolio includes RJ45, USB/Mini USB and Fiber Optic LC Duplex connectors in plastic, metalized plastic or full metal.
IP67 connectors developed by CONEC broad portfolio
Please contact SALES for more information.
back to the top
Staubli News...
Staubli's power connectors are a key link in the railway power chain.
Iris Certification® is a global system enabling the rail sector to benefit from a strong and recognized evaluation method. Its successful implementation creates a win-win situation for all stakeholders. Established as a UNIFE working group in 2005, IRIS Certification aims to secure higher quality in the rail sector through developing and implementing a global system for the evaluation of companies supplying to the railway industry. Uniform language, assessment guidelines and mutual acceptance of audits create a high level of transparency and trust towards IRIS Certification throughout the supply chain enhancing competition and increasing the quality of rail products.According to Verified Market Research's report in October 2021, North America Rail Transport Market size was valued at USD 84,817.41 Million in 2020 and is projected to reach USD 128,111.33 Million by 2028, growing at a CAGR of 4.31% from 2021 to 2028. The USA is expected to hold the largest market share followed by Canada, which again is going to monitor the rapid growth during the forecasted period. Due to the revamp of the oil and natural gas industry, the market for rail transport witnessed a rising trend in the past two years.
You need a partner you can trust, certified to provide a connector solution that works. Staubli's power connectors are a key link in the railway power chain. Among the Staubli products serving the rail industry is the CT-HE range of modular CombiTac connectors. Designed for connecting battery packs used on rolling stock and other rail applications, they can be configured with or without signal contacts.
Applications
- Battery and backup systems
- Bogie and traction motor
- Converter and inverter
- Intercar solutions
Staubli IRIS ISO TS-22163 Certificate.
Staubli Railway Connectors.
Staubli Modular Power Connector MPC.
Please contact SALES for more information.
back to the top
Fischer News...
Fischer's cost-effective, easy to us, modular Core Series Disposable.
The Fischer Core Series Disposable meets the needs of medical device manufacturers whose products are designed for disposal after a short number of uses. This push-pull circular connector is a cost-effective solution that does not compromise on quality. Whether directly mounted into a disposable hand piece, overmolded or mounted onto a disposable cable, this plastic connector offers multiple configurations and optimally suits a wide array of applications, from catheters to surgical hand tools and more. This turnkey solution is pre-cabled, and thus fast and simple to integrate into any medical device. With an ingress protection of IP40 and a high degree of electrical insulation, it is compatible with Fischer Core Series Brass 104 receptacles.
- Cost-effective single use plugs
- Sterilizable (EtO, Gamma)
- Lightweight and shock resistant
- Reliable and faultless handling
- Easy and fast assembly (snap-lock design)
- Modular or turnkey solution
- Color-coded for easy identification
For more information, download FISCHER CORE SERIES DISPOSABLE FLYER.
Please contact SALES for more information.
back to the top
JAE News...
Everything about Floating Board-to-board Connectors MA01 Series
The MA01 Series is the next generation floating board-to-board connector. This product features a highly reliable two-point contact structure, achieving high-speed transmission exceeding 8Gbps. With an operation temperature range of -40o C to 125o C the connector is suitable for harsh temperature environments unique to the automotive industry.
The use of connectors in electronic devices that are subject to motion, and especially in the automotive industry, is challenged by two major issues: the compensation of manufacturing and assembly tolerances and the allowance for board movements due to shocks, vibrations and temperature changes. The new MA01 series offers a robust double contact point. In addition, the reliable flat contact surface prevents the challenges related to micro-vibration.
For more information, download Catalog.
Please contact Sales for more information.
back to the top
Fischer News...
Go where you haven't gone before.
Fischer Connectors' new rugged fiber connector solutions are taking fiber to new environments. These pre-cabled connectors stands up to mud, muck and abuse, places where "normal" fiber connectors don't dare tread.
"This product embodies what we do best at Fischer Connectors," says Product Manager David Magni, "Creating robust push-pull connectors that maintain high optical performance in extreme environments!"
Check out the easy-to-clean Fiber Connectors video by Fischer on YouTube:
The new Fischer FiberOptic interconnecting solution is specially designed for premium optical performance in extreme environments. The Fischer FiberOptic interconnecting technology offers the best quality and stability needed for an optical link, combined with extreme robustness, easy mating and easy cleaning. Download the full tech spec HERE.
EMAIL US for more information on Fischer's FiberOptic interconnecting solutions.
Smiths Interconnect...
Strengthening the National Passenger Rail Network
According to a poll that came out in March of 2022 from the Rail Passengers Association, the vast majority of Americans want the federal government to invest in strengthening the national passenger rail network. In fact, with the rising and unpredictable costs of gas, rail would be a more cost-effective solution for more Americans to access jobs currently too far to commute to.Smiths Interconnect's experience in high performance connector solutions, antenna systems, RF components and cable assemblies for rolling stock, signaling and infrastructure results in customer-driven, reliable solutions for their customers. Read their recent brochure on Metro, Monorail and Driverless Connectivity Solutions.
One of the many solutions, and stocked exclusively at Kensington, is the REP Series.
REP series is easy to use for quick mating. The REP panel and cable connectors are a highly cost-effective interconnect system, which solves the constant need for simple and reliable connector solutions in rail applications. A full plastic solution offered in either wire attachment or PCB mounting options to provide rapid assembly installation without requiring additional mounting hardware. Cable receptacle connectors are available to mate with the cable plug connectors for cable-to-cable solutions when needed. The series is qualified to French and European rail standards.
- Conforms to EN 45545 and EN 50124 standards
- Voltage rating up to 400 V
- Allows wire sections from 0.5 mm? to 2.5 mm? (20-12AWG)
- Crimp, straight, PCB or bent termination options
- Long life cycle connectors with immunity to shock and vibration fretting
- Signal, power, coaxial and high speed, RF contacts and spring probes solutions
- Straight dip, right angle solder, crimp, solder cup and Wire Wrap(r) terminations
- Board-to-board, cable to board, cable to cable and stacking
Smiths Interconnect KA Series Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect...
Disposable vs. Reusable...Why choose disposable?
Once medical cables have been opened, they need to be sterilized before they can be used again, whether or not they ever came in contact with the patient. Steps involved include:- Prolonged soaking, cleaning and rinsing in pH-neutral enzymatic cleansers and sanitizers that are compatible with all device materials
- Testing to measure and/or calculate continuity to verify functionality as well as isolation (cross talk), to detect any breakdown of electrical insulation
- Short circuits are detected by measuring the resistance between each pair of electrodes
According to a study released by Rady Children's Hospital in San Diego, medical supply reprocessing, including maintenance, packaging, labor, and high-level disinfection. costs about $0.51 to $0.77 per instrument, with only 13% to 21.9% of opened instruments ultimately used. When reusable pacing wires are opened for a surgical procedure, all wires are exposed and must be decontaminated, re-assembled, and sterilized, regardless of whether the cables were used.
The alternative is disposable cables. Manufacturers can save time by eliminating the need to clean and disinfect wires between patient use. When choosing a disposable connector, the medical industry cannot rely on low-cost, poor-quality connectors. Failure is not an option.
Smiths Interconnect's Hypergrip® Series disposable connectors are designed to meet customer's ergonomic requirements and reduce total system cost by delivering a reliable interconnect solution for single or few uses, ideal for applications that don't require high cycle life but still require a premium disposable connector, mated with a high cycle receptacle.
Connectors designed for Value and Performance
- Modular four-piece design allows customer to purchase only what they need.
- Crimp and poke pins designed for ease of installation and plating optimized for disposable applications
- Support for high volume processes such as overmolding for low cost of ownership
- Utilized existing insertion tool and crimp positioner for assembly
- Maintains electrical performance of HG Series Plugs
- Innovative keying system allows customers to build connectors with 6 different keying options reducing lead time and inventory
- Available in 5 color options for effortless mating recognition
- IPX4 Sealed when mated*
- Flammability: UL94 V-0 rated
- Fingerproof: Meets requirements of IEC 60601-1
- Supports biocompatibility
- Processing Temperatures up to 185oC
Smiths Interconnect HyperGrip® Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect...
What are some key decisions to make when buying a Rack and Panel connector? Why do you need a Rack and Panel connector?
Let's start with the why.Designers use Rack & Panel connectors to connect a device and an equipment rack, which are primarily connections in critical environments for the medical, aerospace, and defense industries that need blind mating capabilities.
What key factors should a design engineer look for?
What environment will the connector be in?
How many mating cycles do you need?
How much force do you have to put in to remove the device from the panel?
What space constraints do you have?
L Series Connectors, from Smiths Interconnect, are high density, modular, rack & panel connectors that include coax and high current contacts up to 200 A. The L series is used in demanding applications where the environment requires durability, ruggedization, and extended operating life. Utilizing Hypertac® hyperboloid contact technology, the interconnects offer high mating cycles (up to 100,000) combined with low insertion and extraction mating forces, as well as unsurpassable immunity to shock and vibration. This modular building block system enables for custom connectors with large numbers of contacts to be configured in to a single frame. The user is capable, therefore, of selecting and customizing the connector to meet the exact requirements with off the shelf components and shortened lead times.
Check out this case study - Smiths Interconnect L Series Connects for Therapeutic System
Smiths Interconnect L Series Brochure
Smiths Interconnect LN Series White Paper
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect News...
IN STOCK ONLY AT KENSINGTON ELECTRONICS, INC.
Hypergrip® disposable connectors offer a cost-effective solution for single-use medical devices.Medical disposables are essential products in the field of healthcare and the demand for single-use devices (including endoscopes, catheters and patient monitoring systems) has increased significantly, even before the COVID-19 pandemic, to ensure patient-specific care while reducing the risk of infection/contamination. To meet the market demand, Smiths Interconnect's Hypergrip® Series delivers a reliable interconnect solution for single or few uses, ideal for applications that don't require high cycle life but still require a premium disposable connector, mated with a high cycle receptacle.
Available in 2 sizes of 12 and 33 contact positions and designed to support overmolding.
HYPERGRIP® SERIES - Qualification of Disposable HG2 Plug Connectors
Hypergrip® Disposable Connectors Customer Presentation
Contact our Sales Department for techinical assistance and more information.
back to the top
Fischer Connectors News...
Freedom? Imagine it.
EASY MATING - EASY CLEANING - EASY INTEGRATION
The Fischer Freedom™ Series is a versatile and modular technology platform. Thanks to its plug & use system with no key code allowing for 360o mating freedom, this series empowers innovation as a network enabler in connectivity and application design.Fischer LP360™
The low-profile Fischer LP360™ is a miniaturized active device, a fastening mechanism and an electrical signal and power connection all in one. Serving as a smart network enabler in wearable and IoT ecosystems, it has won multiple innovation awards since its launch in 2018.
Technical Specs
Material & surface finish: Metal
Made in high-end metal materials including stainless steel for its housing and locking system, the Fischer LP360™ connector is ultra-robust, resisting extreme temperatures and enduring up to 10,000 mating cycles. (image)
Material & surface finish: Plastic
The Fischer LP360™ connector in plastic is a smaller and lighter solution with high quality and durability standards. Made of a high-end composite based on PEEK, it's IP67-sealed (mated and unmated) and endures up to 5,000 mating cycles. Up to 70% lighter than the connector in metal, it's ideal for use in applications where size and weight optimization is paramount. (image)
Need more proof? Check this out...
Multiple award winning product!
Learn more about the Freedom Series, Freedom Series with LED, Freedom Series Rugged Flash Drive, Freedom Series USB 2.0 Adaptor, and LP360 Visible Low-Light Camera. The possibilities are endless and all available now.
What can you do with all this Freedom?
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect News...
How to Reduce the Cost of Therapy without Undermining the Quality of Care
The continued need to evolve and develop smarter solutions has driven exciting new innovations that are reducing the cost-per-therapy in the medical sector without compromising life-critical performance. As medical service providers stretch their budgets to support an expanding and aging patient list, they need device and component manufacturers to provide more value-oriented solutions that reduce the cost-of-ownership - from manufacturing and assembly to therapy and ongoing maintenance. Until now reduced cost has been synonymous with reduced standards. But, as a premium provider to the sector, Smiths Interconnect was determined to deliver quality connectors at a more welcome price-point.D series connectors for Autoclaved Medical Devices
Utilizing a high strength polymer, the D Series is designed to withstand up to 20 autoclave cycles and is selectively loaded with up to 25 hyperboloid contacts.
Download the White Paper
Find other ways Smiths Interconnect is decreasing the cost of ownership for medical devices...
back to the top
Omnetics News...
Omnetics PZN (Polarized Nano) Connectors
When a life is on the line, every second is crucial, just like every connection. Omnetics has a vast history with connector solutions for the medical industry.Omnetics PZN (Polarized Nano) connectors offer some of the smallest board to cable mounted connectors in the industry. Using the most rugged Nano-pin to socket systems assure high performance in low profile light weight interconnections. These ultra-miniature connectors are available in a variety of board mount options as well as wired options. The nano miniature family of connectors are designed for applications, where reduced size & weight are essential in design.
Omnetics-Short Form Catalog
Contact our Sales Department for techinical assistance and more information.
back to the top
Smiths Interconnect News...
Intercompact Series optimized and qualified for next generation Electronic Control Units
The Intercompact Series is Smiths Interconnect's answer to the rail and industrial market growing demand for compact, high-speed, and reliable connectivity for ECU boxes, in the respect of severe material and electric current requirements."The new generation of Electronic Control Unit boxes requires a sophisticated interconnect solution able to support steadily all I/O signals that the advanced devices handle," said Mark Kelleher, Vice President and General Manager of the Connector Business Unit at Smiths Interconnect. "The new Intercompact Series is designed to offer a dependable interconnect solution that is more compact than those currently available in the marketplace, offering significant space and weight savings to our customers," he added.
The Intercompact Series is an innovative solution for Board-to-Board and floating mounting Rack-and-Panel applications. Intercompact Connectors Application applications currently offered in both signal and Ethernet versions. Designed to meet the requirements of the rail and industrial environments, it is also suitable for other demanding markets such as defense, space and test & measurement.
INTERCOMPACT Series Brochure
INTERCOMPACT Series Technical Specs
Case Study
Contact our Sales Department for techinical assistance and more information.
back to the top
HALO News...
As devices get smaller, save space without compromising on performance with Halo's GEmini™ and GEmini+™.
The industry's smallest IEEE802.3at compliant PoE and PoE+ Ethernet transformer solutions. The GEmini™ and GEmini+™ reduces the transformer real estate required by up 50%.
Why do you need ethernet magnetics? All Ethernet enabled equipment has to include magnetics as the Ethernet specification for 10/100/1000BASE-T networks requires a certain level of galvanic isolation from the cable. Transformers provide common mode rejection which is useful for noise attenuation between the PHY device (transceiver IC) and the physical medium (cable). One option for Ethernet magnetics that is widely used is to add an Ethernet magnetic module to your design's PCB, between the PHY chip and the connector jack.
How do you choose? The Ethernet standard indicates the properties magnetics need to have. After that, look for a discrete magnetic module's common mode rejection figures as well as the insertion loss at different frequencies. Checking the literature for the PHY chip in your design will often reveal the manufacturer's recommendations based on specific modules they have tested alongside their own chip.
How can HALO help?
The GEmini™ and GEmini+™ series are UL60950, EN60950 and DEMKO recognized for SELV to TNV-1 applications and meet the requirements of IEEE802.3 for 10/100 and Gigabit.
This series is available in both commercial and industrial temperature ranges and is designed for traditional Gigabit Ethernet or Gigabit with Power Over Ethernet (POE) applications. As well, the dual nature of the GEmini(tm) series enables it to be used in high density dual port 10/100 Ethernet or dual port 10/100 with POE applications providing a significant reduction in real estate while reducing the component count.
GEmini+™
This device is designed to meet the DC bias requirements of IEEE802.3at for both commercial and industrial temperature ranges. The dual personality of the GEmini+™ enables this to be used in high density dual port 10/100 or single port Gigabit POE+ Ethernet applications.
The GEmini+™ is the perfect solution for high-power, small appliances such as cameras and wireless base stations and any other real estate sensitive applications.
The GEmini™ and GEmini+™ series are proprietary products requiring a Non Disclosure Agreement (NDA). Click HERE to download and complete.
To contact our Sales Department for techinical assistance and more information, please click HERE.
back to the top
Smiths Interconnect News...
ESA Space-Qualified Backplane Connector
The first COTS Plus 2mm Hard Metric backplane connector, tested and qualified to ESA ESCC 3401 specifications. The SpaceNXT™ Aurora connectors have gone through extensive qualification testing to ESA ESCC 3401 specifications in order to validate today's rigorous application requirements per customer and industry.Overview
Today, products available on the market require expensive qualification testing which costs are fully absorbed by the customer. By introducing Aurora solutions to the LEO satellites space market, customers reduce their lead times, lower their cost of ownership, and increase their confidence that products will meet their specifications and needs.
The range is available in three sizes of 55, 110 and 125 contacts in industry standard gender configuration, in straight and right-angle configurations. SpaceNXT™ Aurora is offered with 1.27 micron gold plating for improved durability and resistance to fretting corrosion versus standard COTS Hard Metric connectors.
What is a LEO satellite? A LEO satellite is a low earth orbit satellite constellation usually at an altitude of less than 1000 km but could be as low as 160 km above Earth.
How are LEO satellite constellations changing communications? IoT devices in remote areas such as deserts, forests, and oceans, or in extreme topographical areas are unable to have direct terrestrial network accesses which then can only be covered by satellite. LEO satellite constellation has the advantages of low propagation delay, small propagation loss and global coverage.
Features & Benefits
- COTS Plus 2mm Hard Metric backplane connector
- Tested and qualified to ESA ESCC 3401 specifications
- Demonstrated readiness for Low Earth Orbit environment
- 1.27μm (50 μin) coverage on contact mating surfaces offering greater resistance to fretting versus alternate plating materials
- High reliable solution from an AS9100 certified supplier avoiding additional site audits
- Available in 3 sizes: 55, 110 and 125 pin straight & right angle versions
- Meets the mechanical footprint of Hard Metric specs
Smiths Interconnect SpaceNXT™ Aurora Series Quality Test Report
Smiths Interconnect SpaceNXT™ Aurora Series Brochure
Contact sales for more information..
back to the top
Smiths Interconnect News...
Hypergrip® Flex connectors offer a cost-effective design for standard cycle life applications
Smiths Interconnect announced today the extension of its Hypergrip® connector series for the medical market with the addition of the new Hypergrip® Flex connectors. Hypergrip® is a well known, patented and proven series of high reliability circular connectors specifically designed for the medical industry. Thanks to its recognized market successes, the Hypergrip series has established a strong reputation of reliability, versatility, and ease-of-use. Not resting on its laurels, Smiths Interconnect has now enlarged the series with the Hypergrip® Flex, ideal for most of the medical market applications including devices for patient monitoring, electrosurgical and endoscopic tools, catheters, home healthcare and portable therapeutic applications."The new Hypergrip® Flex embeds all benefits of the existing Hypergrip® connector within a cost-effective design for standard cycle life applications," says Mark Kelleher, VP and General Manager of the Connectors Business Unit at Smiths Interconnect. "Our advanced keying system allows customers to build connectors with six different keyed versions of the same standard connector reducing lead time and inventory."
HyperGrip® Flex is designed to meet medical industry requirements such as finger-proofing to IEC60601, flammability rated to UL94 V0, and compliance with most sterilization methods.
- Low Level Contact Resistance (LLCR) compared to standard contacts available in the market
- High density with 0.4 mm diameter socket contacts
- Low insertion and extraction forces: connector mates and de-mates smoothly with low force reducing
- Standard industry cycle life: the MR contact provides industry standard cycle life of at least 2K cycles, for general medical applications
- Lower Cost of Ownership: the machined MR crimp contact allows for high volumes and lower costs with simplified "Crimp and Poke" assembly vs traditional nested solder contacts
- RoHS III compliant materials
Smiths Interconnect HyperGrip® MR Connector Series Test Report
Smiths Interconnect HyperGrip® Brochure
Contact sales for more information..
back to the top
JAE News...
NEW USB4™ 40Gbps - DX07 Series Connectors
JAE's new USB4 certified 2-row SMT USB Type-C® receptacles support high-speed data rates up to 40 Gbps, double that of previous USB 3.2 variations. These connectors satisfy the strict USB4 40Gbps specifications for signal integrity with an optimized internal structure.USB4™ is the newest revision to the USB specification supporting transmission speeds of up to 40Gbps, which is double that of the previous USB 3.2 revision. The idea of tunneling, which allows multiple protocols to be combined over a single interface, has also been introduced to increase flexibility. USB 3.2 data, display (DisplayPort) and load/store (PCIe) information tunneling is possible depending on the device. It also allows devices to intelligently allocate the total available bandwidth based on the requirements of the devices which are connected. The same USB Type-C® form factor has been carried over to ensure backwards compatibility. However, there are new signal integrity requirements for USB4 which required the development of completely new and improved connectors and cables. For the first time, there are normative, or mandatory, signal integrity requirements for individual connectors that must be met in order to be certified for use in USB4™ 40Gbps devices.
As a global leader in interconnect technology, JAE was an active contributor in the USB-IF working group tasked with creating the new specifications. JAE also offers a large line up of USB Type-C® connectors and cables that support various requirements such as USB Power Delivery, USB 2.0 only, and Thunderbolt™ 3. USB4 and Thunderbolt™ 4 certified receptacle options available now.
DX07 Series USB4™ 40Gbps Connector Solutions
Contact sales for more information..
back to the top
Kensington News...
Outgassing and it's effects on space applications and how Kensington's Manufacturers can help...
Outgassing is defined as the release of a gas that was dissolved, trapped, frozen, or absorbed in some material. Outgassing is usually most relevant in vacuum applications. This makes outgassing, and the addressing of, crucial in selecting electronic components in critical applications such as satellites and other space-based equipment to medical equipment. Look for ASTM E595-07 rated materials for the lowest outgassing materials available.Smiths Interconnect is the supplier of choice for safe, efficient and highly reliable connectivity in space applications. Our proven expertise and know how, gained over more than 60 years in the space market, enable us to design innovative solutions that are smaller, lighter weight and robust where increased ruggedness is paramount to withstand vibration, shock, temperature extremes and radiation.
Smiths Interconnect Space Brochure
Smiths Interconnect recently launched its SpaceNXT™ Series, an overarching initiative that entails the creation of higher reliability products for next generation space applications that are readily available to the market. By offering components that are pre-tested and qualified for space use Smiths Interconnect helps customers reduce their lead times.
SpaceNXT Q Series - coaxial cable assemblies
SpaceNXT Aurora Series - Hard Metric backplane connectors
Axon' Cable designs and manufactures ESA and space-grade wires and cables, miniature connectors, and cable assemblies and harnesses for a large number of space applications (ISS, planetary missions, satellites etc). "We are very well-versed in the constraints of the space market, and take out-gassing into account from the very beginning of the design of our tailor-made interconnect links," said Sandrine Hermant, marketing project manager at Axon' Cable. "We select materials such as thermoplastics, polyimide, or PTFE with low outgassing properties for our wires and cables. The materials of the inserts and seals used in our connectors are selected with the same concern. Materials involved in the manufacturing process are also chosen to limit outgassing; for example, the potting process used to manufacture bus bars."
Axon' Expertise in Space: Cables and Interconnect Solutions
Omnetics Connector Corporation has a rich history of supporting orbital and deep space projects. Their connectors have been used on the Co-Star, Space Shuttle, Mars Rover and Iridium satellite, to name a few. New Connector Design & Materials are focused on low weight, high density and rugged superiority to meet the extreme reliability demands during launch through deep space operations. Special "rugged-mount" designs can be made to system configurations. Materials have been selected for thermal-expansion match to sustain continued performance from launch pad through geo-thermal orbit conditions. With increased densification of cable diameter and reduced connector size, nano-interconnect systems offer significantly reduced weight and lower payload costs.
Omnetics Circular Connectors Catalog
Omnetics Connector Corporation's Micro and Nano 360 Circular are offered in a metal housing for an environmental seal.
Contact sales for more information..
back to the top
Omnetics News...
USB 3.1 Gen 1 Circular
Omnetics Nano 360® USB 3.0 connectors provide the reliability and ruggedness expected from Omnetics connectors, while passing the signal requirements of USB 3.0 (USB 3.1 Gen 1). Using both simulation and measurement, Omnetics maximized the performance for USB by optimizing the pin locations of the critical signals.Check out the Specifications, Dimensions, and Characterization then ask our sales team for more information or a quote!
Omnetics USB 3.1 Gen 1 Circular Specifications.
Omnetics USB 3.1 Gen 1 Circular Dimensions.
Omnetics USB 3.1 Gen 1 Circular Characterization.
Contact sales for more information..
back to the top
JAE News...
AX01 Series - Floating Board-to-Board Connectors
A "Floating Connector" is an electro-mechanical interconnect that absorbs misalignments in both "x" and "y" directions, that commonly occur when the interface is mounted on a PCB. With the help of a floating structure within a connector, damage to individual elements of a PCB (such as solder points and further connector interfaces) can be prevented. In particular, misalignments in the PCB mounting and assembly processes in "x" and "y" directions are absorbed. As part of the overall PCB design process it is important to take into consideration all relevant dimensions and associated tolerances. To name a few: screw holes, floating and rigid connector side, and the interface between the PCB and SMT connector contacts.The miniaturization megatrend is driving the need for decreasing dimensions, which has limited PCB realestate. This has driven the necessity for automated robotic assembly, and finer pitch connectivity solutions.
Floating connectors are used in various industrial markets. In Industrial Applications, these connectors are used in PLCs, CNCs, industrial PCs, Sensor Units and Controllers. In Automotive Applications, they are used in Car Navigation Systems, Audio Modules, and Wireless Modules.
Features:
- Mating Guide Construction (X/Y ± 1 mm)
- Floating Range (X/Y ± 0.5 mm)
Benefits:
- Absorbs Misalignment of PCB Mounted Connectors
- Accommodates Multiple Board-to-Board Connectors on a Single PCB
- Absorbs Misalignments During Assembly
- Reduces Connector Stress after Mounting
- Increases Design Flexibility
For additional, detailed information, download Brochure.
Contact sales for more information..
back to the top
Smiths Interconnect News...
LSH Rack and Panel Connector Series
The LSH rack and panel connector series from Smiths Interconnect is utilized across many different market segments including aerospace, automotive, industrial, test and measurement, and mass transit. The foundation upon which the LSH is built is the leading-edge Hypertac(r) hyperboloid contact technology. This world class interconnect technology ensures LSH connectors are immune to shock, vibration and fretting. In addition, it features the low insertion and extraction forces that are a catalyst for easy mating. The LSH Series delivers customers a life cycle that can be maintained for 100,000+ mating cycles and at an extremely low cost of ownership.Features & Benefits:
- 200 amps per contact
- 1 to 6 contacts
- Very low mating forces
- Radial float .049" (1.25mm)
- Threaded terminals
- One row .925" (23.50mm) centers
- 0.239" (6.08mm) contacts
- Blind mate capability
Brochure
Contact sales for more information..
back to the top
Smiths Interconnect News...
High Reliability Medical Connectors
HyperGrip is a circular plastic, user-configurable, color coded connector with push/pull latching design allowing for one-hand disconnect. HyperGrip is designed to meet medical industry requirements such as finger-proofing to IEC60601, flammability rated to UL94 V0, and is compatible with most sterilization requirements.Features & Benefits:
- 5, 12 19 and 33 contact positions
- 1 A per contact
- IP65 sealed when mated
- EMI/RFI shielding option
- Push/pull latching design
- Ideal for disposable applications
- 6 Keyable positions
- 5 color options
Overview
Designed specifically for the Medical Industry, that is customer keyable for quick and accurate connections on medical equipment. This unique HyperGrip keying system allows customers greater freedom and flexibility to build connectors with six different keying options from a set of common components, thereby reducing cost, lead time and inventory.
Unique to HyperGrip is the front or rear panel mount receptacle design which allows the user to mount the harness assembly from inside or outside of the device enclosure. HyperGrip is designed to meet Medical Industry requirements such as finger-proofing to IEC60601, flammability rated to UL94 V0, and is compatible with most sterilization requirements. HyperGrip is offered in several configurations; including the 5 position HG0, 12 position HG2, 19 position HG3, and 33 position HG4. Also available is a shielded version for the HG2, HG3, and HG4 size for EMI/RFI protection as well as Spring Probe, Fiber Optic (expanded beam), Butt-Joint Contacts, and Coaxial Contacts.
Download HyperGrip Brochure
Request Quote
Custom cable assemblies and overmolds provided by Kensington Electronics, Inc. available in low volume, high mix requirements.
back to the top
CONEC News...
Conec offers an extensive line of sensor input connectors...
High-performance connector technology is the basis for industrial networking of devices, machinery and manufacturing plants.CONEC expanded its portfolio of M12 circular connectors to include the series of L-coded variants, thus offering a compact (30% less installation space requirement compared to a 7/8 overmolded connector), high-performance solution for industrial applications. Also available with a color coupling element.
Benefits:
- Compact design
- IEC 61076-2-111 standard compliant
- High current transmission
- Protection class IP67
- RoHS compliant
- Anti-vibration
- Easy assembly
Applications:
- Drive technology
- Automation engineering
- Industrial interfaces
- Assembly and production lines
- Cable assembly
- Process automation
- Servomotors
- Mechanical manufacturing
Product News 2020
Product Overview
Contact sales for more information..
back to the top
Fischer Connectors News...
Freedom. Reimagined.
Fischer Connectors has released 2 new products in their award-winning Freedom Series.The NEW size 08 has 4 contacts and is offered in a plastic or metal housing for the receptacle and plastic for the plug. This lightweight solution weighs in (without cable) at only 15.8g. Both the cable and bend relief are available in black or tan 499. The new, smaller addition to the Freedom Series also has the same features as the 7-contact product including:
- Easy Mating, Easy Cleaning, Easy Integration
- Optimized cable management
- Low profile
- Sand proof
- IP68 -20m connected/IP67 disconnected (plug)
Fischer LP360™ is a range of versatile, plug and use connectivity solutions that includes connectors, cable assemblies and active devices to maximize usability, efficiency and performance. The connectors have no key code, providing 360o mating freedom for optimized cable management. Membrane-sealed contacts ensure a fully cleanable connector (both plug and receptacle). Low profile allows for easy integration in any environment.
Technical Brochure
Fischer LP360 Flyer
Contact sales for more information..
back to the top
JAE News...
JAE keeping the bandwidth going...
The MM80 series is a socket connector for the high-capacity DDR3 SDRAM SODIMM (Double Data Rate 3 Synchronous Dynamic Random-Access Memory, officially abbreviated as DDR3 SDRAM), which is compatible with the MO-268C JEDEC standard. The DDR3 standard permits DRAM chip capacities of up to 8 gibibits (Gibit), and up to four ranks of 64 bits each for a total maximum of 16 gibibytes (GiB) per DDR3 DIMM.Features:
- 204 pin socket for DDR3 SDRAM SODIMM, compatible with JEDEC standard (MO-268C)
- Incorrect-insertion prevention key operating voltage is DDR3 compatible 1.5 V
- Right-angle SMT type, connector height: 5.2 mm
- Reverse mounting type also available (heights: 5.2 mm)
Check Stock
Product Information Module
Online Catalog
Contact sales for more information..
back to the top
Fischer News...
Fischer Connectors offering a cost-effective solution for the disposable connector market...
The Fischer Core Disposable Series meets the needs of medical device manufacturers whose products are designed for disposal after a short number of uses. This push-pull circular connector is a cost-effective solution that does not compromise on quality. This product range truly contributes to the competitive pricing and performance necessary for disposable medical devices. Whether directly mounted into a disposable hand piece, overmolded or mounted to a disposable cable, this plastic connector offers multiple configurations and optimally suits a wide array of applications, from catheters to surgical hand tools and more. Available in white, blue, violet and turquoise.
Features:
- ISO 13485
- Fully insulated body
- Modular system
- Compatible with Fischer core series
- Color-coded
- Snap-lock design
- Tactile feel
BROCHURE
APPLICATION GUIDE
TECNICAL SPECS
Contact sales for more information..
back to the top
JAE News...
5G is here!
5G is here, transforming lives with faster download speeds, low latency, and more capacity and connectivity for billions of devices...but that speed is bringing too much heat.JAE has launched an optical communication connector, FO-BD7 Series, for outdoor equipment, such as 5G base stations. The product incorporates an optical module (*SFP+, SFP28, etc.) in the plug connector and is capable of suppressing thermal influence.
With the spread of 5G, there is a growing demand for high performing miniaturized base stations that can be installed in compact spaces. With base stations becoming smaller thermal management becomes a key point in connector design. Especially as base station, which communicate with core networks, have designed in optical modules which can easily be affected by heat. This tends to be a common problem while designing base stations. At times, optical modules require replacement once the base station is installed and as this being a complex process the expectation relies on easier connector replacement.
To cater to these demands we have launched, FO-BD7 Series, an outdoor environmentally resistant optical connector, where the plug connector has an optical module incorporated for heat dissipation.
In this product the optical module is incorporated into the plug connector, where the optical module is standardly installed inside the base station. Our thermal analysis simulations show that the product design secures thermal conduction route improving the heat dissipation of the optical module, providing a solution for thermal management design within the equipment.
With the optical module embedded into the plug connector the operation of replacing the optical module within a base station becomes that much simpler.
Besides base stations, this product can be considered for various outdoor devices, such as surveillance cameras.
Features:
- Thermal countermeasure by installing an optical module within the plug connector
- Seamless optical module replacement process
- IP67 rated water / dust ingress protection
- Environmental resistance ideal for outdoor applications
PRODUCT RELEASE
Contact sales for more information..
back to the top
JAE News...
JAE's next-generation USB Type-C™ receptacle added to the product family.
JAE has developed and launched 16-position USB Type-C receptacles that have all contacts arranged into a single row of SMT terminals for easier PCB termination and routing. They are ideal for applications requiring USB 2.0 data rates and fast charging only. The usage of USB Type-C is increasing for specialized power supply applications such as power adapters, power banks (mobile batteries), and as a replacement for the conventional standard USB 2.0 Type-A as well as standard and micro B connectors.Features:
- Compatible with USB Type-C Specification
- Compatible with USB Power Delivery
a) Supports 5 A max. power supply - Reversible plug makes it possible to insert both ways
- Lock structure with superior durability
- Large selection of connector variations are available
- 16-position Right Angle Receptacle
a) Compliant with USB Type-C Specification Release 2.0
b) 16-position (after removing the Super Speed pins), supporting USB2. 0 (480Mbps) transmission
c) Standard SMT on-board type, which is in high demand for a wide range of applications
d) Single row SMT terminals for easy inspection and repair of solder joints - SMT Contact Horizontal Receptacle
a) 2-row SMT type receptacle connector with a mounting area space-saving
b) Compliant with Universal Serial Bus Type-C Specification Release 2.0
c) Compatible with 10Gbps x2 (20Gbps) Super Speed communication. (USB 3.2) - Hybrid Contact Receptacle
a) Through-hole, SMT hybrid contact receptacle which allows for reworking
b) Compliant with USB Type-C Specification Release 2.0
c) Compatible with 10Gbps x2 (20Gbps) Super Speed communication. (USB 3.2) - Waterproof Receptacle
a) Waterproof performance rating of IPX7 or higher - Vertical Receptacle (Shell DIP Type)
a) Vertical type receptacle ideal for monitors and other peripheral devices.
b) Compliant with Universal Serial Bus Type-C Specification Release 2.0
c) Compatible with 10Gbps x2 (20Gbps) Super Speed communication. (USB 3.2) - Vertical Receptacle (SMT Type)
a) Compatible with all board thickness
b) Compatible with Universal Serial Bus Type-C Specification Release 2.0
c) Compatible with 10Gbps x2 (20Gbps) Super Speed communication. (USB 3.2)
Catalog Pages:
DX07 Series 16-position Right Angle Receptacle
DX07 Series SMT Contact Receptacle
DX07 Series Hybrid Contact Receptacle
DX07 Series Waterproof Receptacle
DX07 Series Vertical Receptacle
DX07 Series Vertical Plug
DX07 Series Plugs
Contact sales for more information..
back to the top
New from JAE...
WP26DK Series
With the spread of new technologies such as 5G, mounting density of parts is increasing inside of small mobile devices such as smartphones, wearable devices, and tablet PCs. There are also trends for improving on existing features including increasing battery size and adding more sensors such as cameras. For this reason, it is a prerequisite that connectors used inside these devices are smaller, but they must also support higher current and improved mechanical strength.The WP26DK Series is a robust 0.35 mm pitch stacking type board-to board connector to cater to these needs.
This product has greatly improved strength and reliability by equipping hold-downs with protective metal fittings on the vulnerable internal surfaces of the insulator as well as the top mating surfaces. The additional protection is critical for preventing damage to the connector if they are initially misaligned during the mating process. Furthermore, there is a reduction in the total number of terminals required by using the 2 hold-downs as power supply terminals that can handle up to 3A each. This allows for miniaturization of devices by saving board-mounting space, and contributes to the design flexibility for engineers.
Features:
- 0.35mm pitch, 2 rows, 0.6mm stacking height, 1.9mm width
- Two hold-downs for power supply, supporting transmission of 3.0A
- Hold-down structure adds protection to the mating surface to prevent damage to the insulator (Armored)
- Robust design with metal fitting to prevent damage to the internal insulator surfaces during mating
- Improved workability for customers with a clear click feeling
- Highly reliable 2-point contact structure
- Nickel barrier on contact prevents solder wicking
- Supports MIPI, USB3.1 Gen2, and PCIe Gen3 transmission
PRODUCT RELEASE
CATALOG
Contact sales for more information..
back to the top
JAE News...
MX80 Series - Compact, Waterproof, Automotive In-Line Connector
JAE has recently developed an industry and class-leading, high performance, miniature sealed connector system for the automotive market. As car manufacturers continuously strive to add functionality, more and more electrical and electronic systems must be fitted into smaller spaces and connectors are often the last consideration. The need for miniaturization has never been higher than it is today. In some extreme cases, the connectors have larger dimensions than the modules they serve!
The physical size of a connector is directly related to its performance. Some suppliers claim to have the smallest, most compact connector systems available, but experience has shown that this level of miniaturization is often at the cost of performance. This trade-off often leaves the car manufacturers with no choice but to make concessions on their test criteria, a situation that is less than ideal. The MX80 series has been specifically developed to address this issue.
Every aspect of the MX80 design has been scrutinized and conventions challenged. The starting point were the terminals inside. The engineers considered many aspects such as spring geometry, current handling, mechanical locking, wire size range, crimp optimization, damage prevention, test probe access, installation & removal, wide operating temperature as well as sealing and vibration performance. Once this was defined, the next step was to consider the connector design, by putting JAE's proven expertise in manufacturing high quality miniaturized connectors to good use. Detailed consideration was given to molding design, material selection and assembly.
Features:
- 2, 3 and 4-way in-line (wire to wire) connectors available
- Supports extensive wire size range (0.13 to 1.0mm2)
- Tested to automotive specifications USCAR 2 /21 & LV214
- 3 key codes
- AK /USCAR standardized 0.64mm terminal geometry
- Mounting / stowage features
- Terminal Position Assurance (TPA) functionality
- Features for 'ring out board' testing
- Mirror & Glazing : Door mirrors, roof systems, electrochromic glass, glazing modules.
- Lighting : Front & rear bumper, fog light, reversing light, stop lamp, license plate illumination, indicator, puddle lamp, ambient lighting.
- Sensor : Parking, brake pedal, camera, keyless entry module, tire pressure, fluid reservoir.
- Audio : Speaker (anti-rattle and large wire size), microphone.
- Others : Suspension, tailgate, doors, bonnet switch.
MX08 Series Catalog
Contact sales for more information..
back to the top
JAE News...
AX01 Series - Next Generation Floating Board-to-Board Connector
Staying on top of the ADAS (Advanced Driver Assistance System) market takes high quality, high speed connectors. Because most roadway crashes occur due to human error, automated technology in the vehicle has the potential to save thousands of lives. The AX01 Series is the next generation floating board-to-board connector which features a highly reliable two-point contact structure, achieving high-speed transmission exceeding 8 Gbps. The floating tolerance of +/- 0.5mm in both X & Y directions absorbs misalignment on the board and reduces stress on mounting portion.Features Include:
- Floating tolerance: +/-0.5 mm in both X & Y directions
- Stacking height tolerance between boards: +/-0.5 mm in Z-axis direction
- Two-point contact structure ensures high contact reliability
- Low insertion and removal forces achieved by roll surface contact structure
- 8 Gbps+ high-speed transmission (10GBASE-KR and PCIe Gen3)
- Excellent mating workability with large size guide shape, supports automatic assembly and mating (mating guide length: +/-1.0 mm)
- Supports automatic mounting
- Allows for multiple connectors to be used on a single board
- Keyed to prevent mis-mating
AX01 Series Catalog
Contact sales for more information..
back to the top
Smiths Interconnect News...
Smiths Interconnect's KA Series
MIL-DTL-55302 Compliant ConnectorsFeatures & Benefits:
- MIL-DTL-55302 Compliant Connectors come in 2 - 5 row configurations designed with the legendary Hypertac® Hyperboloid Technology.
- The 2 and 3 row series are equivalent to MIL-DTL-55302 and offer flexibility not available with other interconnects.
- 55302 Compliant Connectors were designed as high reliability printed circuit board connectors offering pin counts from 17 to 490 contacts which are widely used in Defense, Commercial Aerospace, and Space Applications.
- Many versions are NASA qualified and specific ESA qualified part numbers can be found in the KNB & KNC/KND catalog pages.
55302 Compliant Connectors feature the Hypertac® Hyperboloid contact technology and offers all the benefits found with this technology including:
- Over 2,500 models can be constructed with available components
- 0.100 [2.54] on center (adjacent rows offset by 0.050 [1.27] to allow straight printed circuit traces)
- Straight dip, right angle solder, crimp, solder cup and Wire Wrap(r) terminations
- 0.024 [0.60] diameter pins/sockets rated at 4 Amps
- Average insertion/extraction force of 1 ounce per contact
- Contacts removable from wiring side (front release, rear removable)
- Front release, front removable option available on receptacle with 160 contacts
- Alignment and keying provided by the end guides - 36 combinations (user changeable)
- Male or female contacts and guides available in either plug or receptacle
- Immunity to shock and vibration fretting
Click HERE to download Smiths Interconnect's KA Series catalog.
To contact our Sales Department for more information, please click HERE.
back to the top
Smiths Interconnect News...
Smiths Interconnect's KVPX Series
Resistant to Shock & Vibration - High Speed up to 16 Gbps - Faceplate to Protect Daughtercard PinsSmiths Interconnect's KVPX Series is an embedded interconnect system that provides unrivaled performance in harsh environments while adapting to the VITA standard design requirements. By utilizing the Hypertac® superior hyperboloid contact technology, the KVPX Series ensures exceptional tolerance to shock and vibration, low insertion forces, high current ratings and the lowest fretting corrosion available.
Features & Benefits:
- The waferized daughter-card assembly also provides single-ended and power wafer options. The backplane modules are available in 8 and 16 row increments on a 1.8mm x 1.8mm grid, with user-configurable keying and integrated stainless steel guide pin/keys.
- The KVPX connector platform offers the ability to scale from 80 Mbps to over 10 Gbps while retaining the same Vita 46 backplane slot pitch at 20.3mm to 25.4mm. KVPX backplane connectors utilize 0.4mm Hypertac hyperboloid space qualified sockets, known to provide immunity to shock and vibration fretting, numerous linear paths of contact, low-forces, high mating cycles, and a self-wiping cleaning action that results in consistently better integrity in extreme environments.The KVPX daughtercard connectors incorporate a front face plate which prevents damage to the male contacts in an unmated condition.
- KVPX is best suited and positioned for data intensive applications where high throughput and high computes are the critical factors. Intelligence, Surveillance & Reconnaissance (ISR), Signals Intelligence (SIGINT), radar applications and Electronic Counter Measures (ECM).
- High Speed up to 16 Gbps
- Compatible with VITA 46, 47 and 78 (Space) standards
- Flexible modular design for standard 3U and 6U as well as custom configurations
- Faceplate to protect daughtercard pins; press-fit termination
Click HERE to download Smiths Interconnect's KVPX Series brochure.
To contact our Sales Department for more information, please click HERE.
back to the top
Smiths Interconnect News...
L Series Modular Connectors
Smiths Interconnect expands its L Series modular connectors with new contact technologiesSmiths Interconnect, a leading provider of technically differentiated electronic components, subsystems, microwave and radio frequency products announced, in June, the extension of its L modular connector Series with the addition of 2 new module types that complete the company's wide offering of modular solutions.
Smiths Interconnect's L Series (L Series Brochure) of modular connectors is easy to assemble, based on the principle of building blocks with a system composed of two elements: modules and frames. Modules of various styles and different contact types are available for different application requirements, combining signal, power, and coaxial contact technologies (Contact Technology) into custom arrangements within a single connector frame.
Smiths Interconnect now offers two new contact technologies, fiber optic (Fiber Optic Contact Technology) and pneumatic, into the proven modular connector series. The new hybrid module combines two fiber optic termini with the option of one of their premium Coaxtac (Fiber Optic Contact Technology) coaxial contacts or a 25Amp Hypertac power contact (Hyperboloid Technology); the new pneumatic module adds the function of the air contacts to offer the possibility of a mechanical performance within a modular configuration.
Ideal for rugged rack & panel applications, the L Series can now support additional applications that require high speed data transmission in Space, Commercial Aerospace, Defense, and Industrial market segments with the hybrid module) and mechanical power (in robots, testing and tooling machines with the pneumatic module).
Both new modules can be used in the standard versions of the L Series as well as in those compliant to EN45545 requirements for fire safety, and offer the following distinctive technical features and benefits:
Hybrid module (F):
- Mix and Match
- Fiber optic interconnects for 1.3mm 62.5/125?m multimode fiber optic cables with either:
- Coaxial contacts for RG316, RG316DB, RG405 or T-Flex 405 cable, or:
- Power contacts for 12-14AWG wire
- Allows designers to combine fiber optic with copper cables to take advantage of the performance benefits of fiber, including reduced size and weight, immunity to EMI/RFI, no cross talk or loss of signal strength over long distances, and the difficulty of tapping fiber optic cables which increases system security.
- May be used singly or in multiples, in conjunction with a variety of L Series modules, combining signal, power, and/or RF contacts in an assortment of standard rack and panel or cable to panel frames.
- Ideal for Space, Aerospace, Defense, and Industrial applications.
Pneumatic Module (PN):
Download new L Series Catalog HERE.
Check out the Case Study for the L Series in a Therapeutic System.
To contact our Sales Department for more information, please click HERE.
back to the top
Smiths Interconnect News...
SpaceNXT™ Aurora Series
ESA Space Qualified Backplane ConnectorSmiths Interconnect's SpaceNXT™ Aurora Series, the first COTS Plus 2mm Hard Metric backplane connector, tested and qualified to ESA ESCC 3401 specifications. The SpaceNXT™ Aurora connectors have gone through extensive qualification testing to ESA ESCC 3401 specifications in order to validate today's rigorous application requirements per customer and industry.
High value proposition, low cost of ownership for your LEO Satellite application!
Click HERE to download Smiths Interconnect's SpaceNXT™ AuroraSeries - Quality Test Report.
Click HERE to download Smiths Interconnect's SpaceNXT™ Aurora Series brochure.
To contact our Sales Department for more information, please click HERE.
back to the top
Smiths Interconnect News...
Smith Interconnect's D Series delivers industry-leading performance featuring simple push-button latching and a "D" shaped flange which makes mating orientation obvious. There are three D Series sizes that accommodate a wide variety of applications. The D01 plug is available with up to nine Hypertac® hyperboloid contacts in less than 0.5" diameter, while the slightly larger D02 offers more extensive options, from three power to 25 signal contacts, or a mixture of power or coax and signal contacts. In addition, the mini D00 connector includes five signal contacts in a format nearly 30% smaller than the D01. The D Series provides medical equipment designers with reliable connections for applications as diverse as electro-physiology catheters, patient monitors, MRIs, intravascular ultrasounds, defibrillators, infusion pumps and laboratory equipment.
Features and Benefits:
Autoclavable: Options for the D Series include high temperature versions molded in Ultem® (polyetherimide) plastic*, which have been shown to withstand 20 autoclave cycles while maintaining the high reliability needed for critical medical applications which require sterilization (see "Autoclavable D series" white paper).
D Series connectors are also used in a variety of industrial, rail and commercial applications where reliability is critical. Cable assemblies are also offered, incorporating the D Series with overmolding, integrated electronics, metal shells for increased strength, or alternate contact configurations to meet specific customer requirements.
- 3, 4, 5, 7, 9, 12, & 25 contact positions
- 1 to 8 amps per contact
- Alignment provided by housing
- Crimp and solder cup contacts
- Recessed contact terminations
- Push button release for mating and unmating
- Autoclavable versions available
Stock Checks:
D01P Stock Check
D01EE Stock Check
D02P Stock Check
D02EE Stock Check
Smiths Interconnect DSeries Connectors Brochure.
Smiths Interconnect D Series connectors tech sheet.
To contact our Sales Department for techinical assistance and more information, please click HERE.
back to the top
Fischer News...
Fischer Connectors has great news to share! No fewer than nine new products now add to the capability of Fischer Freedom™ to serve as a versatile technology platform and innovation enabler in connectivity and application design. This is great if you are focused on SWaP (Size, Weight and Power) requirements, cable management optimization, electronic network integration and wearable technology. Take a look at the details below.
NEW LP360™ products. Size 14 with 7 signal & power contacts - features: cabled receptacle (1) and panel plug (2); active devices: USB 2.0 adaptor (3) and LED (4), Rugged Flash Drive (5). Size 08 with 4 signal & power contacts; material, configuration & size: in plastic (high-end composite based on PEEK) with cabled plug (6) and panel receptacle (7); in metal with panel receptacle (8) and panel plug (9).
Fischer Freedom™ allows design engineers to add more technology and functionality into fixed or wearable ecosystems and cable-free devices. It doesn't matter if you are in defense & security, medical, instrumentation, industrial and civil engineering, robotics, wearables, IoT, etc. Freedom means freedom to work in every market. The new products use the breakthrough plug & use technology of Fischer Freedom™'s first product, the multiple award-winning Fischer LP360™ connector.
Fischer Freedom™ offer:
- Easy mating: no key code for 360o mating, non-magnetic quick-release locking
- Easy cleaning: both receptacle and plug (membrane-sealed contacts)
- Easy integration: low profile, direct plug integration into devices' housings
Don't hesitate to contact us with specific requests. We are here for you - wherever you are.
Please click HERE to read the Fischer Freedom™ Series brochure.
Download the Tech Sheet HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
RDI News...
Today RDI is announcing a new Industrial strength, high audio quality, miniature SMT speaker rated at 1.0W / 4 Ohms impedance. Please find attached the Press Release as well as the Data Sheet for this new product.
Features:
- Excellent frequency response across the audio spectrum
- 25mm x 9mm x 3mm dimensions
- Robust metal frame construction
- 1.0W continuous power, 4 Ohm impedance
- 89dB of powerful audio output with ultra-low harmonic distortion
- SMT mounting to reduce manufacturing costs
Markets and Applications:
- IoT
- IIoT (Industrial IoT)
- Voice Services such as devices implementing Amazon and Google services
- Industrial Electronics such as intercoms, communications, alerts and alarms, acoustic feedback
- Security and Safety devices
Please click HERE to read the full press release.
Download the Data Sheet HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
Conec News...
CONEC has expanded its portfolio of M12 circular connectors to include the series of L-coded variants, thus offering a compact (30% less installation space requirement compared to a 7/8? overmolded connector), high-performance solution for industrial applications.
Electric drives, devices and servo motors are increasingly used in the field directly in the machine or plant. In addition to signals and data, more and more power has to be transmitted. Miniaturization in automation means that field devices and controllers are becoming ever smaller.
Connectors are field attachable:
Axial female and male variants are available for the connectors that can be assembled; these are designed with a screw connection for a strand cross-section of up to 2.5 mm?. The advantage of the screw contacts is that they can be assembled very easily and several times. The maximum connection cross section of 2.5 mm? and the very compact design (outer diameter 23 mm only) make it possible to transmit maximum power with this connector system.
All variants meet the IP67 protection class in mated condition. The new M12x1 L coding is standardized according to IEC 61076-2-111.
Benefits:
- Compact design
- IEC 61076-2-111 standard compliant
- High current transmission
- Protection class IP67
- RoHS compliant
- Anti-vibration
- Easy assembly
Applications:
- Drive technology
- Automation engineering
- Industrial interfaces
- Assembly and production lines
- Cable assembly
- Process automation
- Servomotors
- Mechanical manufacturing
Download the Circular Connector Overview from Conec HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
RDI News...
Today RDI is announcing an addition to its growing USB Type C connector series with the addition of a new ultra-miniature USB Type C Vertical Mount receptacle supporting speeds up to 10Gbs. Please find attached the Press Release as well as the Data Sheet for this new product.
Features:
- USB Type C receptacle
- Ultra-miniature 8mm x 6mm x 2mm dimensions
- Vertical SMT mount
- USB power up to 90W
- Industrial grade stainless steel construction
Markets and Applications:
- IoT
- IIoT (Industrial IoT)
- Medical and Industrial devices
- Consumer Electronics
- Wearable and Portable Electronics
Please click HERE to read the full press release.
Download the Data Sheet HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
ALPS Electric Co. News...
Manufacturing industry applications for MEMS pressure sensors continue to increase based on the need for more tightly controlled processes with their associated quality control requirements. Increased monitoring of pressure and/or vacuum can detect the need for equipment maintenance prior to untimely failures that cause excessive downtime and increase manufacturing costs.
ALPS HSPPAD132A pressure sensor uses piezo-resistive bridge circuits formed on the silicon diaphragm. The device consists of a pressure and temperature sensor, 16b-bit analog to digital converter, control unit with MTP ROM, and 12C serial interface.
Why use a pressure sensor:
A pressure sensor is a device equipped with a pressure-sensitive element that measures the pressure of a gas or a liquid against a diaphragm made of stainless steel, silicon, etc., and converts the measured value into an electrical signal as an output.
Key Features:
- Water-proof pressure sensor with temperature-compensated digital output
- 300 to 1100 hPa absolute pressure range
- I2C Interface
- 16-bit termperature data output
- Current consumption down to 9.5?A (1Hz Sampling)
- Supply voltage 1.7 to 3.6V
- Operating temperature range -10? to ?60?
- Pressure accuracy + or - 2hPa
- Noise 2Pa (RMS)
Please click HERE to read the Pressure Sensor Application Note.
Download the Data Sheet HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
L Series from Smiths Interconnect...
Smiths Interconnects' L Series comes with frames in various lengths to accommodate a variety of module combinations. The frames range from a basic frame with just 2 side rails and 2 end caps, to more complex versions with jackscrews, backshells, cable clamps, etc. One of the many advantages of the Hypertac® contact used is its low extraction and insertion forces. In this application it enables the user to assemble large numbers of contacts into a connector which is still able to mate and unmate smoothly and easily.
Request a Quote Download Brochure
Features & Benefits
L Series Connectors are high density, modular, rack & panel connectors that include coax and high current contacts up to 200 A. The L Series is used in high demanding of applications where the environment requires durability, ruggedization and extended operating life. Utilizing the Hypertac contact technology the interconnects offer high mating cycles (up to 100,000) combined with low insertion and extraction mating forces, as well as unsurpassable immunity to shock and vibration. This modular building block system enables for custom connectors with large numbers of contacts to be configured in to a single frame. Therefore, the user is capable of selecting and customizing the connector to meet the exact requirements with off the shelf components and shortened lead times.
- Mixed signal, power, and coaxial modules
- Provides up to 200 amp power
- Cable to chassis and rack & panel; Plastic backshell with strain relief and half turn quick disconnect jackscrew
- Float mountable for blind mating
- Configurations compliant to EN45545 standardsDifferent signals
- Large offering thanks to the modularity
- High reliability contact technology
- Several locking devises and hood are proposed
- Floating version
back to the top
Stewart Connector News...
Based on the reliability of Stewart Connector's USB 2.0 jack coupled with a sealed housing design, Stewart Connector's SealJack™ provides reliable connectivity in the most demanding environments. This unique sealed design is the lightest and most compact on the market, which can be used to transmit up to 480 Mbit/s.
Reliability and functionality are a necessity when the need for Ethernet begins to move outside the typical office environment. Moisture and other environmental factors limit the capabilities of electronics in these environments thus requiring a sealed yet reliable connector that protects against such factors.
Specifications:
- Supports speeds up to 480 Mbit/s
- Minimum of 750 mating cycles
- Allows for sealed protection from outside elements for IP67 applications
- The connector housing is comprised of a Zinc diecast alloy with tin plating
- POE compatible and RoHS Compliant
- A compact design that minimizes weight, volume, and area over competitive products
- Includes a gasket that allows for a front panel mounting
To contact our Sales Department for more information or to request a a copy of the tech sheets, please click HERE.
back to the top
Alps News...
Alps Alpine Develops Force Sensor with High Impact Resistance
Alps Alpine Co., Ltd., a manufacturer of high-quality electronic products, has added the HSFPAR004A Force Sensor to its lineup. The sensor enhances impact resistance while maintaining the industry's smallest size and offers high linearity and high resolution, which makes it ideal for use in stylus pens and other input devices.
These days, electronic blackboards and tablets are being used on several occasions, such as school sessions and company meetings. Therefore, demand for pen-shaped devices (stylus pen), which are mostly used for the purpose of working creatively - including digital drawing and painting - has been growing. Stylus pens, or styli, contain force sensors that trace the trajectory of the pen tip and then reproduce different thicknesses in the artwork corresponding to the pressure applied. Styli require a sensor with high resolution and linearity, but also need to be sturdy enough to not break when the pen is unintentionally dropped.
The HSFPAR004A lives up to these requirements because it maintains the features of already existing products for high linearity (<2%fs), high resolution (detects micro force with less than 0.01 n), and small size of 2.00 mm x 1.60 mm x 0.66 mm (WxDxH), while at the same time realizing an improvement in impact resistance of up to 55 n. the sensor offers an operating life of 1,000,000 cycles and is resistant to external magnetic and electric fields. besides its use in input devices, the sensor is suitable for industrial machines handling precision equipment and a range of diverse applications, especially on the grip parts of robot arms for precision grip force adjustments.
KEY FEATURES:
- High impact resistance proved by a breaking load of 55 N
- Detects micro force of less than 0.01 N
- Long operating life of more than 1 million cycles
- Resistant to external magnetic fields and electric fields
Click HERE to download ALPS Force Sensor HSFPAR004A Data Sheet.
To contact our Sales Department for more information, please click HERE.
back to the top
Stäubli News...
New CombiTac 2.5 kV high voltage module available from Stäubli.
Stäubli Electrical Connectors has extended their existing CombiTac high voltage solutions portfolio by adding a brand-new 4-pole high voltage module for voltage levels up to 2000 V AC and 2500 V DC.The new high voltage module enables users to quickly and easily insert 4 high voltage contacts in a space-saving carrier without the use of tools and therefore reducing assembly time to the minimum.
The use of specially formed MULTILAM contact technology in the CombiTac high voltage 1.5 mm contacts guarantees long-life connector performance (100,000 mating cycles) and the overall solution is resistant to vibrations and shock.
Features:
- Long-life solution: up to 100,000 mating cycles
- Quick assembly: tool-free insertion of pin and socket contacts
- Space-saving solution: 4-pole carrier width 8mm
- Railway standard compliant material according to EN 45545-2 (HL3 R22 - R22)
- Resistance to shock and vibrations according to EN 61373 category 1B
- User safety: IP2X protection on socket front
For more information, Click HERE to download the CombiTac Main Catalog.
For more information, Click HERE to download the CombiTac High Voltage Module 2.5 kV flyer.
To contact our Sales Department for more information, please click HERE.
back to the top
Stäubli News...
Stäubli...still the market leader in Alternative Energy.
As experienced specialists and market leaders for electrical connectors in photovoltaics, Stäubli offer long-lasting quality components that help to reduce operational and maintenance cost. Safe and efficient products along the whole electrical PV supply chain provide reliability and increase the bankability of the project. Whether for on-board applications with high vibration resistance, e.g. connectors for batteries and inverters, or for infrastructure applications with high mating cycles: Stäubli ensures highest performance reliability and maximum safety.- Snap-in locking
- Locking by safety lock clip PV-SSh2 in accordance with NEC 2011, can be released only with tool
- Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
- Tried and tested plug connectors, 12 years of experience in the field
- Available for assembly with cross-sections of 10mm?
- Also available as ready-made leads
- Leads made to customer's specifications
Click HERE to download the digital catalog today.
To contact our Sales Department for more information, please click HERE.
back to the top
Aces Connectors News...
Move data faster with SAS! And don't wait 14-20 weeks to do it.
- High Quality
- Competitive Pricing
- Helpful Customer Service
- In Stock or 5 Week Max Leadtimes
- And NO Tariffs.
SAS receptacle and plug connectors enable the implementation of the high-speed, Serial Attached SCSI (SAS) hard disk drive (HDD) interface that is replacing the SCSI drive connection in enterprise storage applications in servers and storage systems. The SAS connector system is designed to support hot plugging and blind mating of HDDs.
Additional Features:
- Servers
- Storage Blades
- External Storage Systems
- HDDs
- Embedded System Boards
Click HERE to download the digital catalog today.
To contact our Sales Department for more information, please click HERE.
back to the top
Smiths Interconnect News...
Interested in the HG Series from Smiths Interconnect you read about in the Product Roundup from Connector Supplier? Read on...
Designed specifically for the medical industry, Smiths Interconnect's HyperGrip is a circular plastic, user-configurable, color coded connector that is customer keyable for quick and accurate connections on medical equipment. This unique HyperGrip keying system allows customers greater freedom and diversity to build connectors with six different keying options from a set of common components, thereby reducing cost, lead time and inventory.All HyperGrip sizes include an option for IP67 level sealing protecting the product when immersed temporarily in water to a depth of 1 meter for up to 1 minute. Also unique to HyperGrip is the front or rear panel mount receptacle design which allows the user to mount the harness assembly from inside or outside of the device enclosure. HyperGrip is designed to meet medical industry requirements such as finger-proofing to IEC60601, flammability rated to UL94 V0, and is compatible with most sterilization requirements.
HyperGrip offers more configurations, including connectors with 5 (HG0), 19 (HG3) or 33 (HG4) Hypertac pin positions to complement the growing 12 pin position connector (HG2). Also available is a shielded version for the HG2, HG3, and HG4 size for EMI/RFI protection as well as Spring Probe, Fiber Optic (expanded beam and butt joint) and Coaxial contacts.
Additional Features:
- 5 (HG0), 12 (HG2), 19 (HG3) or 33 (HG4) contact positions
- Shielding option for HG2, HG3, and HG4
- Overmoldable plug design
- Customer keyable
Available with:
- Hypertac contacts
- Hypertac signal contacts
- Fiber Optic - expanded beam (size 12) and butt joint (size 16)
- Coaxial contacts
- Spring probe contacts
- High-end engineering plastic components meet medical sterilizing and cleaning requirements
- Crimp/Solder contact terminations available
- Front and rear panel mounting options for receptacleMeets fingerproofing requirements of UL544 and IEC60601-1
Download the CATALOG HERE..
Download the CASE STUDY HERE..
Download the STERILIZATION TEST REPORTS HERE..
To contact our Sales Department for more information, please click HERE.
back to the top
Stewart Connector News...
Stewart Connector New Product Announcement!
Stewart Connector announces the release of the Qwik RJ45™ Cat6/Cat5E RJ45 Modular Plug, to complement Stewart's extensive RJ45 Modular Plug offering. Applications for this connector include data, telecommunication, and industrial equipment connection. Qwik RJ45™ terminations can be completed on location in the field or in the factory environment. Qwik RJ45™ CAT6/CAT5E Modular Plugs allow the installer to insert the cable into the connector prior to trimming conductors to required length. Stewart Connector's 2940263-02 termination tool trims the cable conductors to required length while terminating the plug contacts. The Qwik RJ45™ Modular Plug eliminates the pre-trim step needed to assemble traditional RJ45 Modular Plugs reducing termination time.Specifications
- 50 micro inches of gold plating on contacts
- Terminates to cable diameter of up to .235"
- Accommodates conductor diameters of .037" to .042"
- Designed to terminate 24AWG and 26AWG conductors
- Optional snagless slimline strain relief boot available
- Designed for quick and easy field termination
- Cat5E and Cat 6 performance rated
- Contact designed for use on solid or stranded conductor cable
- Capable of field or factory termination with Stewart Connector 2940263-02 or other available quick termination tools
To contact our Sales Department for more information, please click HERE.
back to the top
Fischer News...
Fischer Connectors offers a cost-effective, single use plug for your disposable application.
The Fischer Disposable Series meets the needs of medical device manufacturers whose products are designed for disposal after a short number of uses. This push-pull circular connector is a cost effective solution that does not compromise on quality. This product range truly contributes to the competitive pricing and performance necessary for disposable medical devices. Whether directly mounted into a disposable hand piece, overmolded or mounted to a disposable cable, this plastic connector offers multiple configurations and optimally suits a wide array of applications, from catheters to surgical hand tools and more.High performance, every time
Key Features:
- ISO 13485
- Fully insulated body
- Fully Customizable
- Suited for a variety of configurations
- Stamped or machined contacts
- Easy to Use
- Compatible with Fischer Core Series receptaclesEasy integration of embedded electronics
- Color coded for easy identification
- Easy and fast assembly
- Snap-lock design
- Quality tactile feel
The new Fischer Disposable Turnkey Solution has similar features as the rest of the disposable range but is pre-cabled and therefore immediately useable in an application. The Fischer Disposable Turnkey Solution has an ingress protection of IP65, is dust tight and protected against water and also provides a high degree of electrical insulation. Compatible with the receptacles of the Fischer Core Series (rated at 10,000 mating cycles), it is available with brass contacts in an 8 pin configuration as standard (a 16 pin configuration is available on demand), 1,2 or 5 meter lengths of PVC medical cable, and it is fast and simple to integrate into any medical device.
Download the brochure today. Click HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
Smiths Interconnect News...
Spring probes provide excellent design flexibility
Smiths Interconnect's spring probes provide excellent design flexibility in most applications, allowing them to be more robust, lower profile, and more compact, all with exceptional high frequency performance. Use Smiths Interconnect's spring probes in custom connectors designed specifically for your application.Features & Benefits:
- High insertion life
- Suited for blind mate connections
- Low profile, high compliance ratio
- Ideal for high shock and vibration environments
To contact our Sales Department for more information, please click HERE.
back to the top
JAE Product News...
JAE plays a role in automotive future.
Find out how JAE is playing a role in the future of the automotive industry. With the ADAS North America market projected to grow to $22M by 2023, connector manufacturers are getting in on the infancy of this quickly growing business segment. JAE offers the MX55 and MX49A/MX49C series for the camera modules, the MX34 and MX77A series for the active sensors, and the MX48 series for the ECU. JAE continues to prove that technology inspires innovation.Watch their JAE Automotive Solutions 2018 video.
Camera Module Connectors
MX55
MX49A/MX49C
Active Sensor
MX34
MX77A
Display Module/ECU
MX48
To contact our Sales Department for more information, please click HERE.
back to the top
Conec Product News 2018...
Conec's IP67 USB 2.0 Dual Port Connector
Now available, the IP67 USB 2.0 Dual Port connector for harsh environments. Data communication is also required in outdoor applications. Whether in traffic engineering, in maritime environments or mobile phone applications, long transmission distances and impacts such as heat, rain, snow, salty mist and dust place high demands on all connectors. The IP67 connectors developed by CONEC provide reliable protection against environmental influences and mechanical stress. The broad portfolio includes RJ45, USB/Mini USB and Fibre Optic LC Duplex connectors in plastic, metalized plastic or full metal.Read More in the Product News Brochure.
To contact our Sales Department for more information, please click HERE.
back to the top
Staubli News...
Staubli's HTI Connector
In response to demanding requirements in plastic injection, Staubli developed the HTI, a connector that can withstand temperatures up to 300oC. HTI quick couplings meet all safety requirements and feature a double-action locking system. Designed to be maintenance free, the quick release coupling does not have a seal in the fluid stream. Ideal for temperature control in a variety of sectors including plastic injection, metallurgical (die casting, iron and steel), glass, composites, aluminum and magnesium pressure die-casting.For more information, download the HTI Catalog HERE.
Download the Oil & Gas Brochure HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
Conec News...
Conec's IP67-rated SuperCon® Series connector combines power and data transmission to save cost and space in interface wiring applications.
CONEC has launched a hybrid power and signal circular connector that saves time and costs for cabling, installation and maintenance for conventional wiring of applications like motors, servo drives, linear units/drives and more. By combining power supply and data transmission into one single connector, the compact SuperCon® Series hybrid connector system saves space by eliminating the need for an additional wire and connector.
The rugged IP67-rated connector features a safe and secure connection via a bayonet locking mechanism.
The SuperCon® Series is available in three different sizes, depending on specific applications: B12, B17 and B23. While the number of pins and the permitted voltages vary depending on the size, the 360 degree shielded data core is always the same and is designed for industrial Ethernet Cat 5 with wire cross section AWG22.
Each pin layout is available with a minimum of two different codings that are marked by different color rings. As a result, mismating is impossible.
Sockets are available in various housing variants for front- and back-panel mounting and the installation heights vary on the outside or the inside of the housing. Thus, decentralized wiring chains can be realized with and without daisy chain topology with a cost saving one-cable solution.
For technical assistance, please email sales@keiconn.com. For more information, download Conec's SuperCon® Series hybrid connector system Brochure HERE.
back to the top
JAE News...
JAE's WP7 Series
JAE's 0.4mm pitch WP series is an ideal solution to support the downsizing of electronic devices with their small PCB footprints and low mated heights. Modern devices are becoming extremely complex with various features being added on as FPC attached subassemblies such as cameras, LCD display, touch panels, btteries and sensors. The WP series is ideal for use in slim and portable communication devices. The WP Series features an independent 2-point contact structure to resist twisting stress, secure hold-downs to prevent insulator breakage and peeling of FPC and a clear "clicking" sound and feeling to improve workability and prevent half mating. The WP7 Series has a stacking height of just 0.7mm.For more information, download the Catalog HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
Telegartner News...
Telegartner's SIMFix® series
The reliability of a mobile communication connection depends essentially on the antenna used. This must ensure reliable transmission and reception of data and signals even under the most difficult conditions and stress situations. Telegartner offers the suitable HF connectors as well as RJ45 and FO components for this.The RF connectors in the series SIMFix® are rugged connectors with threaded coupling for use in high performance transmitter applications. These connectors are waterproof and are suitable for external use. Furthermore, they are designed to provide excellent technical performance, especially concerning return loss and intermodulation.
The SIMFix® range includes RF connectors for terminating 1/4", 1/2" flex, 1/2", 7/8", 1-1/2" and 1-5/8" sized corrugated cables.
Assembly for all sizes is simple and reliable, thus guaranteeing constantly good electrical performance with regard to return loss and intermodulation. Ease of termination of the cables has been greatly enhanced by the use of specially developed tooling, which allows for exact stripping of the corrugated cables in the shortest of time.
Protection Step 1:
An O-ring on the outer jacket of the cable guarantees reliable protection against the ingress of water in normal applications of an undamaged cable.
Protection Step 2:
A special sealing to the outer conductor of the cable. Damage to the cable's outer jacket poses the danger that water will enter the connector between the outer jacket and the outer conductor of the cable. This is prevented by the additional sealing.
Protection Step 3:
Barrier sealed by protective steps taken on center contact. Massive destruction of the cable resulting in water ingress into the dielectric and possibly even into the inner conductor can destroy the following cable segment and even damage the base station, if water is able to seep through the connector.
For more information, download Catalog HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
PDI News...
Power Dynamics, Inc.'s, IEC 60309 and Pin & Sleeve Connectors are designed for heavy duty industrial use.
What makes these high voltage, watertight, crush-proof connectors unique...- No Tools, No Screws Necessary
- Easy Action Single-Wiring Point Access Salses Time Wiring
- Simple Cable Clamping
- Unique and Quick
- Watertight and Cable Grip Safety
- The Performance Connection
Read more about each of these on page 6! Click HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
Halo Electronics News...
Don't trust the competition...use the original, innovator...Halo Electronics, Inc.
HALO Electronics, a global supplier of FastJack™ integrated Ethernet RJ45 connectors and discrete transformers, announced its full line of 2.5G and 5G Ethernet transformers to address the increasing data rates of enterprise networking equipment and the higher bandwidth requirements of wireless access points.The 2.5G/5G data rates are an important intermediary step between the 1G and 10G data rates; offering increased data transfer over 1G using existing cable installs as well as lower power consumption per port when compared to 10G.
HALO's 2.5G/5G transformers are available in two packages. The NZ/NZ5 industry standard packages are available in standard temperature and extended temperature versions with PoE, PoE+, and 4PPoE (+90W) capabilities.
In addition to the NZ/NZ5 package, HALO has announced the Nano2.5G series of miniature transformers. The Nano2.5G parts are available in PoE, PoE+, and 4PPoE (60W) options.
Product Highlights:
- Standard and Extended Temperature Ranges
- UL Certified
- IEEE802.3 Compliant
- PoE/PoE+/4PPoE Capable
- Smallest 2.5G Footprint
For more information please visit our page dedicated to HALO's 2.5G/5G by clicking HERE.
To contact our Sales Department for more information, please click HERE.
back to the top
Fischer Connectors News...
Breakthrough Technology is Revolutionizing Wearables - with brand-new Fischer Freedom™ Series
The Fischer Freedom™ Series revolutionizes wearable connectivity, as it meets design engineers' urgent needs for designing and connecting portable and body-worn applications quickly and easily, thanks to three breakthrough technology innovations:- Mating - no key code allows for 360o mating "freedom"
- Locking - ball-locking mechanism with sealing and variable pre-defined force (patent pending)
- Materials - specially designed pins on the plug are IP68 sealed with a membrane (patent pending)
Thanks to these innovations, the Fischer Freedom™ Series facilitates integration, maximizes usability and optimizes cable management for a wide variety of applications within markets such as defense, security, medical, industrial and civil engineering - to name just a few.
Read the entire the press release HERE.
Download the Freedom Series™ brochure HERE.
Download the Freedom Series™ technical data HERE.
For more information, please contact SALES at Kensington Electronics.
back to the top
Smiths Interconnect News...
Eclipta | Medical Connector
Smiths Interconnect addresses the industry's need for reliable, low cost interconnections with its new Eclipta™ contact technology.
Eclipta incorporates a new highly dependable double edge card contact system which provides reliability, affordability, scalability, and serviceability in connectors which can be depended upon for critical disposable medical device applications.
- Contact design eliminates bent pin damage at point of use
- Fine pitch high density contacts provide smaller footprint
- High cycle life increases Mean Time Between Failures (MTBF)
- Plug and Play design minimizes termination costsEase of assembly reduces installation costs
The Eclipta™ brochure can be viewed or downloaded by clicking HERE.
You can view Smiths Interconnect Medical Capabilities brochure by clicking HERE.
For more information, please contact SALES at Kensington Electronics.
back to the top
LEDtronics News...
LEDtronics new high-power LED high bays
LEDtronics introduces the latest additions to its highly popular and affordable series of dimmable, high-lumen and high-efficiency LED High Bay Fixtures! The 300 and 500 watt low-profile luminaires join the 100W, 150W and 200W in the HBL005 series to offer superior light output in a compact, lightweight body that delivers the longevity, premium performance, reliability and energy efficiency of LED lighting technology.
Features:
- 5-Year UNCONDITIONAL U.S. Factory Warranty
- UL / cUL Listed, IP65 rated
- Dimmable (3-ways)
- Title 24 Compliant
- High Lumen, High CRI, Low Glare
- Energy Savings of 70% over HIDs
- Meanwell Constant-Current Power Driver
- No UV / No IR, Impact Resistant
Applications:
- Factory production / Workshop areas
- Industrial plants
- Warehouses / Depots
- Hangars
- Gymnasiums / Indoor courts
- Conference halls
- Subway & rail platforms
- Toll booths
The brochure can be viewed or downloaded by clicking HERE.
For more information, please contact SALES at Kensington Electronics.
back to the top
Kensington News...
Did you see Smiths Interconnect and Kensington Electronics' Product Spotlight from The Electronic Sourcebook? Find more information here!
For more information, please contact SALES at Kensington Electronics.
back to the top
Kensington News...
Kensington Electronics & Fischer Connectors Product Spotlight
Engineering Excellence for the Oil & Gas Industries
High-performance, high-reliability solutions are a must in the oil and gas industry where dependable operation can help prevent costly downtime or accidents. Fischer Connectors' rugged, corrosion proof stainless steel connectors withstand the toughest conditions. Offered through Kensington, the Core Series Stainless Steel connectors have been specially designed for areas where long-term, reliable solutions in extreme environments are required.
Click HERE to download and view the Core Series brochure.
Engineering Excellence for Industrial applications
Fischer Connectors provides a rugged design that's tough enough to perform in harsh environments, minimizing vibration, withstanding temperature extremes and resisting moisture. These IP68 sealed connectors are effective for use in most industrial environments. Contact Kensington to upgrade communications and vision systems to fiber optic for speed and additional data capacity with sealed, field-cleanable connector and cable solutions.
Click HERE to download and view the Fiber Optic Series brochure.
Engineering Excellence for Robotics and Unmanned Vehicles
Kensington carries the Fischer UltiMate™ Series, which offers rugged, compact, lightweight, sealed connectors and cable assembly solutions ideally suited to withstand a variety of severe environmental, industrial and chemical conditions. This circular push-pull connector features excellent EMC 360o shielding, extremely robust keying and IP68/69 sealing even unmated. Now also available in a high power solution.
Click HERE to download and view the Ultimate™ Series brochure.
Engineering Excellence in Soldier Miniaturization
Fischer Connectors specially designed military connectors are used in most soldier modernization programs, especially in C4ISTAR technologies. The Fischer MiniMax™ Series is a high density, signal & power in one miniature connector saving up to 45% space and reducing weight up to 75% for hand held, body-worn devices. IP68 sealed mated and unmated with a dedicated contact block for USB 3.0, this innovative connector is a must have.
Click HERE to download and view the MiniMax™ Series brochure.
Engineering Excellence in Data Protection in Harsh Environments
Safe storage of data in harsh environments is crucial but if the data is also sensitive and needs to be secured, then Fischer Connectors Rugged Flash Drive is key to any new design. The robust housing keeps your data safe by being IP68/69 sealed, even unmated, and is resistant to extreme temperatures as well as shock and vibration. Keep your data secure with the unique circular connector interface. Contact Kensington today.
Click HERE to download and view the Rugged Flash Drive Series brochure.
Engineering Excellence in Medical Disposable Connections
The Fischer Disposable Series meets the needs of medical device manufacturers whose products are designed for disposal after a short number of uses. This push-pull circular connector is a cost effective solution that does not compromise on quality. This cost-effective, easy to use, modular connector is sterilizable, comes in a single or two-piece shell, is color-coded, and is both lightweight and shock resistant.
Click HERE to download and view the Disposable Series brochure.
For more information, please contact SALES at Kensington Electronics.
back to the top
Kensington News...
Kensington Electronics and Smiths Interconnect expand product offering
Kensington Electronics and Smiths Interconnect expand product offering available through distribution with addition of REP Series. The REP Series is an environmentally-sealed, rectangular plastic connector that has seen much success in the rail industry. Building on that success, the REP Series would be the perfect solution for industries such as sensors, brakes, lighting, air conditioning and communications found within industrial, rail, test and measurement, automotive and defense industries.
The REP Series connector uses the proven Hypertac® hyperboloid contact technology which guarantees excellent reliability, even under high levels of shock and vibration, and allows up to 500 mating cycles and high current rating up to 18 A. The REP connector range offers two main versions: with crimp termination contacts for cable harness applications and with straight or bent termination contacts for PCB mount applications. Both versions are available in 3 layouts: 2, 6 and 12 ways. The REP Series comes with a shunt accessory enabling electrical derivation inside the connector for transmission of information to different locations.
Features:
- Compact, flexible design
- Easy mounting and maintenance
- High quality, integrated features
- Hypertac® contact technology
Benefits:
- Optimized for use in rail and embedded applications
- Complete, tested pre-cabled solutions available to customer's exact specifications
- Fast and reliable connection
- Reduced cost of ownership
- Superior performance
Download the REP Series brochure HERE or download the REP Series customer Power Point presentation HERE.
If you would like to have one of Kensington's Regional Account Managers visit you to review your application and to show you product samples, please email SALES at Kensington Electronics.
back to the top
Fischer News...
Reduce size and weight with MiniMax™
The newest, smallest Fischer MiniMax™ Series is available in two sizes, 06 and 08, with receptacles of 10mm and 12mm footprints respectively. Configurations range from 4 to 24 contacts.
- Density factor of 0.83 with standard 0.5mm contacts
- IP68 mated & unmated
- 5,000 mating cycles
- Data transfer up to 10Gb/s, plus high-speed protocols such as USB 3.0 and HDMI
- Three locking systems: push-pull, screw and quick-release
- NEW: Dedicated contact block for USB 3.0
- Also available pre-cabled with straight or angled bend relief overmold
For the technical specs, click HERE.
back to the top
Sonitron News...
Piezo Components
Have you ever saved a life?
Thanks to the warning sounds of the Sonitron critical piezo components in medical equipment, thousands of lives are saved! What about you?
The Piezo Audio Amplifiers series are a total solution to drive piezoceramic sound components. A range of different PCB sizes, amplifier topologies and maximum voltage peak to peak outputs, cover a wide solution to piezo audio amplification. Piezo audio amplifiers are desigend to handle capacitive loads and have the possibility to deliver large voltages peak to peak over the complete audio frequency range.
The PAA-series give a quality amplifier where a quality sound is needed.
For technical assistance, email sales@keiconn.com. For more information, download and read the technical information by clicking HERE.
back to the top
Stewart Connector News...
USB 2.0 & USB 3.0 Connectors Launch
Stewart Connector, a Bel group company (NASDAQ: BELFA and BELFB) and world class manufacturer of RJ45 connectors used in Ethernet communications, announces the release of the USB 2.0 and USB 3.0 Type-A connectors, designed to meet the ever-growing demand for small, robust and reliable I/O connectors that comply to Universal Serial Bus Standards.
Stewart's USB 2.0 and 3.0 connectors are designed to meet the industries increasing demand for economic solutions where space and faster data rates are a premium. These small form factor, very robust and highly reliable USB connectors are used in IOT devices, laptop and desktop computers, servers. Stewart Connector's USB 2.0 and USB 3.0 connectors meet the ever-growing demand for small yet reliable I/O connectors that comply to Universal Serial Bus standards.
Stewart Connector USB 3.0 connectors are fully backwards compatible with USB 2.0 and 1.0 connectors allowing for re-designs without having to update or change the mating connector.
For technical assistance, email sales@keiconn.com. For more information, download the data sheet HERE.
back to the top
Smiths Interconnect News...
Product Change Notification
Products Impacted: KVPX Backplane Connectors (all p/n's beginning with KX2)
Change Type: Dimensional
Date of Change Implementation: February - March, 2018
In order to provide product to best serve our customers' needs, Smiths Interconnect listens to feedback provided by the market. In the case of the KVPX, feedback from our customers has indicated decreasing the insulator height on the backplane connector would provide greater ease in error free mating, particularly in applications where guide hardware is utilized. Therefore, we are making a permanent change to the insulator; dimensional change illustrated below.
This update will be made as a 'running' change, with the part number remaining the same. Insulators with the existing design shall be consumed until the updated tooling has been qualified. At this time, connectors will begin using the newer design insulator. We are currently estimating the cut over to occur in the February - March, 2018 time frame. All attempts will be made to include one version per shipment.
For questions or concerns, email Bonnie Shores, National Sales Manager. To download the new KVPX brochure, click HERE.
back to the top
Stewart Connector News...
Stewart Connector Introduces SealJack™ Vertical Series-Ideal for Industrial and Field Applications
Stewart Connector, a Bel group company, (NASDAQ: BELFA and BELFB) and world class supplier of RJ45 connectors used in Ethernet communications announces the SealJack™ Vertical Series product line for harsh environment RJ45 connector applications. The Vertical Series is ideally suited in support of connectivity for devices within the Internet of Things, where reliability and functionality are necessary when Ethernet moves outside typical office applications.
The SealJack™ Vertical Series is the first to launch in this new product line from Stewart Connector. The Vertical Series offers a uniquely sealed, light and compact design that can transmit 10/100 Base-T through 10G Base-T Ethernet. Configurations are available in 1 and 4 port vertical harmonica style designs with sealed protection rated for IP67 applications. The design allows for a front or rear panel mounting, and includes various LED options.
These sealed connectors excel when electronics need to be protected from environmental conditions beyond what is capable using traditional RJ45 connectivity.
For technical assistance email sales@keiconn.com. For more information, download Stewart Connector SealJack™ Brochure HERE.
back to the top
Sonitron News...
As featured in Military & Aerospace Electronics' Product Showcase:
Download SXL Series catalog HERE.
back to the top
Smiths Interconnect News...
COTS Plus 2mm Hard Metric Connector For Compact PCI Applications
Smiths Interconnect now offers a COTS Plus 2mm Hard Metric connector for Compact PCI applications. Their "Aurora Series" meets the requirement of fretting corrosion encountered in Commercial Aviation, Space and Defense markets.
- Compatible with K3 Series, MIL-DTL-55302
- No lubricant
- Bifurcated Contact system
- Increased price reflective of increased performance value
- Number of signal pins: 55, 110, 125 contacts
- Connector Type: A, B, C Intermateable with standard 2mm Connectors
- Mounting Style: Straight, Right Angle
- Termination length: 3.70+/-0.20mm (Vertical) 3.0+/-0.20mm (Right Angle)
- Mating Pin Length: 9.75+/-0.20 mm
- Route to market: Direct & via distribution network
Literature Download:
Aurora Brochure
Aurora Series Application Guide
Request Qualification Reports
back to the top
JAE Electronics Training...
Kensington is pleased to offer JAE Electronics Training Modules and Videos.
Many videos and training module PDFs are now available on the KEI website to assist you in finding the JAE Electronics connector that best suits your project.
Click HERE to view the 5 trainings videos and 36 training modules in PDF format.
Halo News...
Using a Maxim transceiver on your board? Maxim specifically names Halo as their recommended source for transformers to be used with their product.
Halo is the trusted source for transformers to be used with these Maxim part numbers:
| MAX256 | TGM-H251NFLF, TGM-4281NFLF |
| MAX258 | |
| MAX845 MAX3535E |
TGMR-310V6FL, TGMR-320V6FL, TGMR-330V6FL, TGMR-340V6FL, TGMR-350V6FL, TGMR-355V6FL, TGMR-3610V6FL, TGMR-370V6FL, TGMR-380V6FL |
| MAX13253 | TGM-H240V8LF, TGM-H260V8LF, TGM-H280V8LF, TGMR-H540V8LF, TGMR-H560V8LF, TGMR-H580V8LF |
| MAX13256 | TGMR-501V6LF, TGMR-502V6LF, TGMR-511V6LF, TGMR-512V6LF |
| MAX14853 MAX14855 |
TGMS-1450V6LF, TGMS-1455V6LF |
Kensington is proud to be an ongoing, stocking partner to Halo. Let us help find which transformer is right for your needs. You can also find most of these ICs referenced in the Low Power Management section of Halo's website. Kensington's Regional Account Managers can also help you select the Halo part number that best fits your solution!
Maxim is a registered trademark of Maxim Integrated Products™. back to the top
Kensington News...
Kensington is proud to add KEL's CP Series of hard metric, two-piece connectors with a 2mm pitch to our product lineup.
2mm Pitch Hard Metric 2 Piece Connector for Compact PCI
Over the past few years, a trend away from VME bus towards PCI has developed as bus speeds continue to increase in fields such as industrial devices, communications equipment, factory automation, medical equipment, and industrial measuring devices. In response to this demand, KEL's new CP Series provides a range of next-generation industrial connectors ideal for dense mounting and high-speed transmission environments. In addition to the long-tail and hot-swap variations to the series, KEL has now also added new 55 contact and 125 contact (plug side) types in order to support a greater range of applications for these high-speed, high-density, multi-contact connectors.
In line with this expansion of the series, a total of five contact variations - namely, 55, 84, 95, 110, and 125 - are now available (with 95 or 110 on the receptacle side), and KEL has further enhanced the lineup in the form of press-fit, 3.7mm long; press-fit, long tail; hot-swap; computer telephony; and shroud types.
By completing their range of compact PC connectors in this way, it is now possible to use KEL connectors alone to configure their current CPCI Series of Compact PCI bus backplanes, thus enabling KEL and Kensington to benefit our customers in the form of faster delivery and lower cost.
Click to HERE view the CP series catalog.
JAE News...
High-current connector from JAE
Latest Developments in Battery Connector Technology for Commercial Energy Storage Systems - A whitepaper by JAE
In order to stabilize current for electric power stations and to respond to the peak cut and shift in offices and HEMS at home for power-saving, the usage of storage battery systems to store electricity temporarily is increasing. Recently, the lithium ion type storage battery is increasing for storage systems, so to add to the power supply type, JAE has proposed a rack and panel type complex connector with a signal contact to check the condition of cell in consideration of the character which every cell has some variation in the amount of accumulation of electricity.
The DW Series connector could reduce manufacturing time for customers and it is available in four kinds of product lineups, including cable type for small-scale storage.
Conformed to UL approved
Electrification countermeasure
Applications:
Storage battery system related equipment
Electric power units
PCS (Power conditioner)
Equipment industries such as semiconductor manufacturing
To read the whitepaper on JAE's latest developments in battery connector technology for commercial energy storage systems, click HERE.
JAE News...
Easy to Use Cable Connector for LED Lighting
The ES3 series (JF3 type) connector from JAE is a compact, low-profile 1-pin cable insertion type connector. This connector is well suited for use in a wide range of applications including LED lighting, LED TV backlight, tablet PC, and other compact devices.
Features:
- cULus certification: File No. E67741
- No harness assembly, single cable insertion.
- Taper at the insertion opening for easy cable insertion.
- Embossed tape packaging for automated mounting.
- LED lighting
- LED TV backlight
- Tablet PC
- Other compact devices
EMAIL US for more information on JAE's ES3 series connector or check pricing online HERE. back to the top
Updated KVPX news from Smiths Interconnect...
New Test results available for the newest member of Smiths Interconnect's Ruggedized Standards Product Portfolio
Smiths Interconnect' legacy is providing innovative ruggedized interconnect solutions for demanding Shock and Vibration requirements; they are expanding their core competencies to also excel at data integrity at high speed under demanding shock and vibration.
The KVPX has been tested to 10gbps and has passed with amazing results. Click HERE to download the white paper. Additionally, Hypertac and Contech Research, an independent test and research lab, have released the qualification results of their VITA 46 VPX Connectors testing. Download the test report HERE.
The KVPX connector line is available and in stock at Kensington Electronics. Kensington is qualified to build modules as well as 3U and 6U configurations. The sales staff has been trained on the different available configurations and can help walk you through your design needs and/or help you cross from your existing product to a rugged, vibration proof Hypertac product.
Call or EMAIL us today. You can download the new KVPX product brochure HERE.
KVPX is:
- Designed for severe environments with demanding levels of shock and vibration
- Meets the VITA 46 mechanical footprint and VITA 48 electrical performance specification
- Provides Optimal signal integrity at 6.25Gbps data rate, currently testing at 10Gbps
- 100 Ohm impedance for differential pair configuration
- Based on the reliable, field proven Hypertac® hyperboloid contact technology rated to 100,000 mating cycles
- KVPX is tested to 35,000 mating cycles
- Footprint compatible with TE RT2
The following eye pattern was generated at 6.25Gbps via SPICE model from measured S parameter data. Note the wide open eye and very low jitter.
Autosplice News...
Solderball Pin™ Technology from Autosplice - SMT Solution to Coplanarity Interconnection
for Power Modules and PCB- based Subassemblies
Solderball Pin™ Technology employs a highly conductive copper pin that incorporates a solder ball on the end that interfaces to the host PCB, providing additional solder to compensate for the coplanarity variation on the SMT board to board interconnection.
Now in stock at KENSINGTON ELECTRONICS!
FEATURES AND BENEFITS:
- Automatic coplanarity compensation: 0.020"
- High current carrying capability: 20A DC
- Converts through hole device into SMT
- Conducts heat from device to Host PCB
Call your Kensington sales representative today for Autosplice's Midi and Mini through hole and surface mount options, or send us an EMAIL.
Click HERE to request your free solderball sample kit!
To download the product brochure, click HERE.
To download the whitepaper on solderball pins, click HERE.
Smiths Interconnect News...
Critical. Reliable. Available.
In critical medical applications, reliable connectors are key and you just can't wait. You need a solution that is available now!
High-reliability medical circular connectors from Smiths Interconnect offer:
- Up to 20,000 Mating Cycles
- Ability to withstand Medical Sterilization and Cleaning Protocols*
- Splash-Proofing and Sealing when mated*
- Color Coded* and Customer Keyable*
- Very Low Contact Resistance
- High-Density, Light Weight, Small Size
- Space-Saving Mini Versions
Kensington Electronics became the first authorized, stocking distributor for Smiths Interconnect in 1995. With 18 years' experience, extensive inventory, and on-line shopping tools, Kensington can help you with your design and deliver a solution in a timely manner because you can't afford to wait.
EMAIL US for more information or pricing on Smiths Interconnect HG and D Series.
Download Product information:
HG Series
Mini HG Series
D0 series
Color D0 Series
Mini D Series
back to the top
JAE News...
Thunderbolt™* Technology Compatible "DP3 Series" 10Gbps Transmission High-Speed Interface Connector Has Been Developed
As the volume of the data processed inside PC's increases, there is a growing demand for high-speed transmission in the connection with external deivces. To meet that demand, JAE has developed the DP3 Series connector for connection between PC's and peripheral devices such as external HDD's and monitors. The DP3 Series is available in four types, including standard and reverse mounting versions, to provide customers with a wide selection to best suit their design needs. The DP3 Series also features through-hole hold-downs on the metal shell for enhanced mounting strength.
APPLICATIONS:
- Notebook PC's
- Monitors
- External HDD's
- 10Gbps, high-speed transmission connector for Thunderbolt
- Friction lock with the metal shell enhances plug retention strength and creates a clear click feeling when mated
- Connector is supplied in embossed reel.
Thunderbolt began at Intel Labs with a simple concept: create an incredibly fast input/output technology that just about anything can plug into. After close technical collaboration between Intel and Apple, Thunderbolt emerged from the lab to make its appearance in Mac computers.
* Thunderbolt is a trademark of Intel in the US and other countries.
EMAIL US for more information or pricing on JAE's DP3 Series. DOWNLOAD the product information brochure HERE.
back to the top
Fischer News...
When a life is on the line...
Fischer Connectors offers proven, reliable connector solutions. For Fischer, it's more than a slogan or a catch phrase; it's a way of life. Find out how Fischer and Ohio Willow Wood took upon the challenge of designing a waterproof prosthesis for amputees, or how Fischer solved Maquet's connector needs for the world's smallest hybrid pump/oxygenator.
FEATURES
- Lightweight connectors
- User safety
- High density signal
- Sterilizable connectors
- Intermateable to metal
- Sealing up to IP68
- Color coding
- EMI/RFI shielding
- "Mix-and-Match" contacts
- Fiber-optic
- Coaxial
- Fluid
- Gas
- High & Low voltage
- High current
- Certified ISO 13485
- Diagnostic Devices
- Surgical Instrumentation
- Therapy Applications
- Medical Imaging
- Cardiac Assist Devices
- Disposable Equipment
For more information on connectors in the medical market you can:
DOWNLOAD Fischer's interview with Medical Device Network .
DOWNLOAD Fischer's whitepaper on managing risk in medical connectors.
DOWNLOAD Fischer's application notes regarding electrosurgical devices.
back to the top
Sonitron News...
Robust Buzzers for Critical, Harsh Environment Applications
Sonitron's SRA Series meets the needs of the most rugged applications in the industrial industry with its long-life, high reliable, buzzer. Able to operate in a wide temperature range, -40oC to +85oC, and a large DC voltage range, 5V DC up to 80V DC, Sonitron's SRA Series is the choice for both critical and harsh environments. This buzzer comes prewired with two, 16AWG wires.
ADVANTAGES
- Solid State Shock Proof Buzzer
- Lifetime>2000 hours (@12V DC continuous use)
- Very Low Power Consumption
- Wrong Polarity Protected
- Panel Mounting, O-ring Included
- IP67, Dust and Waterproof
- Industrial
- Automotive
- Process & Alarm Equipment
- Security & Burglar Alarms
- Life Support Systems
Fischer News...
Compact, Rugged, Lightweight Circular Military Connectors
The Fischer UltiMate™ Original Series is specially designed for use in land based military applications requiring Secure Connections for UltiMate Protection of Future Soldiers and their equipment.
Rugged, lightweight and compact Fischer UltiMate™ Military Connectors Line feature excellent EMC 360o shielding, extremely robust keying, IP68/69K sealing even unmated with Fischer new cable assembly solutions. Download the whitepaper on the need for miniaturization in the military HERE.
Features & Benefits:
- Excellent sealing IP68/69K even unmated
- Rugged connector design for harsh environments
- Extremely robust mechanical keying
- Miniature and ultralight connector design
- EMC 360o high performance shielding
- Easy handling & blind mating connector
- Push-pull locking or emergency quick release system
- High shock and vibration resistance
- Operating temperatures: -50oC to +140oC
- 10,000 mating cycles
- Wide range of connector configurations
- Military standards, ROHS and REACH compliant
- Custom Fischer cable assembly solutions available
- Soft sealing caps for protection of unmated connectors
Future Soldier Systems
- Portable & Hand Held Radios
- Light Weapon Interface Connection
Future Soldier & Land Vehicle Applications
- Day & Night Imaging, Target Acquisition
- Ground Satellite Communication System
- Batteries & Power Sources Devices
- GPS & Situation Awareness Systems
Land Vehicle Applications
- Ground & Underwater Unmanned Vehicle
- Infantry Vehicle Interface Connection
- Guided Bombs & Missiles
- UAV & Sensors Equipments for UAV
EMAIL US for your copy of Fischer's UltiMate™ catalog and let us know if you want a printed or digital copy. Download a copy of Secure Connections for Ultimate protection HERE.. back to the top
Autosplice News...
Creating Vibration-Proof Robust, Solderless, Interconnects
Autosplice's Compliant Pin Headers provide a robust and reliable gas-tight interface for Automotive, Oil & Gas, Aerospace and other harsh environment applications. Compliant technology is designed to create a strong friction-fit between the pin and PCB to withstand environmental factors such as heat, humidity, vibration, shock and other rugged conditions. Download the compliant technology whitepaper HERE.
Save time and costs by eliminating solder process and increase reliability all at the same time.
- Operating Temp: -40oC to +125oC (SAE/USCAR Class III)
- Vibration and Mechanical Shock: 1.8G random axis, and 10 millisecond 35G, 3 axis.
- Thermal Shock: 100 cycles from -40oC to +125oC.
- Temperature/Humidity: 40 cycles from -40oC to +125oC @ 95% RH.
- High Temperature Exposure: +125oC for 1008 hours.
- Mixed Flowing Gas Exposure: H2S @ 500ppb and SO2 at 100ppb at a temperature of 25oC and a relative humidity of 75% for a period of 10 days.
EMAIL US for your copy of Autosplice's Compliant Terminal and Connector selection guide and let us know if you want a printed or digital copy. You can request a compliant pin sample kit HERE. back to the top
Ledtronics News...
LED Lighting for Bridges, Towers, and Tunnels
Ledtronics 180o Beam LED Beacon/All-Weather Luminaire is perfect for any building/construction project requiring very low power consumption (only 19.5 watts), shock and vibration resistance, long life (10+ years of continuous use), super intensity (1350 footcandles), all weather fixtures for hazardous locations. With LED lighting comes major energy savings and low maintainence costs, plus it reduces light pollution. Download the brochure HERE and read why the city of Los Angeles chose this product to light the Vincent Thomas Bridge.
Conserve energy with over 10,000 LED light solutions for your specific needs As a "Made in America," ISO9001/2008 certified and RoHs facility-compliant company based in Torrance, California, Ledtronics can help you with indoor and outdoor LEDs of the highest quality and performance in:
- Architectural Design Lighting
- Healthcare Lighting
- Municipal Street Lighting
- Community and Business Area Lighting
- Retail Lighting
- Tube Lighting
- Strip/String/Path Lighting
- Miniature and Intermediate LED Based Bulbs and more!
EMAIL US for your copy of Ledtronics catalog. Please let us know if you are requesting a printed or digital copy. back to the top
JAE News...
How to Make Effective Connector Selections
JAE manufactures products which are at the leading edge of technology; marketing Fiber Optic, LCD (Board-to-Flex), Waterproof, Board-to-Board, Ultra-Fine Pitch (0.2mm), Circular, I/O, and Card Connectors. Download (link to attached) their short, easy-to-read Product Selection Guide today. Never worry about finding a solution again!
JAE has solutions for applications such as:
- Medical Equipment
- Transportation (snowmobiles, agriculture, industrial, motorcycles, watercraft, ATV)
- Wireless Devices
- LED Lighting Devices
- Notebook PC's, Gaming Devices, Tablets
- Smart Phones
- Exercise Equipment
Click HERE to download your copy of JAE Connector Selection Guide 2017-2018 today. back to the top
Fischer Connectors News...
Circular Rugged Flash Drive for Harsh Environments.
Fischer Connectors' Rugged Flash Drive is an extremely tough USB memory stick specially designed for safe storage and transportation of sensitive data in harsh environment. Looking for a durable and safe storage solution to download and securely transfer confidential data, images or videos from devices used in extreme environmental conditions or equipment located in hard to reach areas? Fischer Rugged Flash Drive is ideally suited for UAV, ROV (Sealing IP68/69K even unmated), optronic devices, GPS, sensors, test & measure equipment or rugged computers.
Features:
Data Protection in Harsh Environments:
- IP68/69K even unmated down to 120m
- Extreme temperature resistant (-40oC to +85oC operating)
- Shock & Vibration Resistant (withstands 26 x 1.5m drops)
Safe Data Storage Solution:
- Unique circular connector interface
- High speed USB 2.0 signaling protocol certified Ultra-Portable Solution
- Miniature for easy storage & transport
- Rugged design for harsh environments
Flexible Modula Design:
- Large selection of body styles, sizes, contact configurations and memory capacities
Applications:
- Military
- Extreme Underwater
- Oil and Gas
- Industrial
- Medical
CLICK HERE for Rugged Flash Drive Catalog or EMAIL US for a catalog and/or pricing. back to the top
Halo News...
A New Series Of SMD Shielded Power Inductors
HALO Electronics, Inc. is pleased to offer their series of miniature molded SMD power inductors. This new HPC series is designed for high efficiency applications such as disc drives, cell phones and other DC/DC filter applications where high current and small size are key. The unique construction offers not only magnetic shielding, but also a smaller footprint compared to similar current rated inductors in the market. Power inductors play an important role in voltage conversion applications by yielding lower core losses. They are also used to store energy, filter EMI noise, and provide lower signal loss in system designs.
The HPC series is available in 3 different sizes depending on inductance value and current handling capability requirements. The HPC104N series, 11.5mm x 10mm x 4mm, has a current rating of up to 40 amps with an inductance range of 0.22 to 10.0uH. The DC resistance is available as low as 1.1 milliohm maximum, depending on inductance value. As well the HPC series is ROHS compliant, lead-free and fully compatible with customers' lead free solder reflow processes.
CLICK HERE for a brochure of the HPC series or EMAIL US for a product info sheet and/or pricing.
Fischer Connectors News...
Secure, Lightweight, Miniature...battlefield connectivity for today's soldiers.
Fischer Connectors is a leading company in the design and manufacturing of rugged, compact, lightweight connectors for harsh environments. The Fischer UltiMate™ Original Series is specially designed for a broad range of harsh environment applications.
Military organizations throughout the world are working hard to lighten the load that soldiers carry into battle, and are looking at connectors as one place to make improvements.
- IP68/69K even unmated
- Rugged design for harsh environments
- Push-pull locking or emergency release system
- EMC 360o high performance shielding
- Shock and vibration resistant
- 10,000 mating cycles
The UltiMate series is also perfectly suited for medical, industrial, instrumentation, extreme underwater and civil security applications.
CLICK HERE for an UltiMate catalog or EMAIL US for a catalog and/or pricing. back to the top
Conec News...
Rugged Factory Automation Solutions
Conec answers the demand for harsh-environment, circular connectors, which are field attachable by developing their IP67/IP69K rated Sensor-Actuator Line. These rugged circular connectors operate at extreme temperatures, up to 125o C, and are available in a variety of sizes including M12, M8 and 7/8". When you can't afford down time, Conec has a solution you can depend on.
Industrial Circular M8/M12/7/8" Sensor Actor Line (SAL)
M12/M8/7/8" Sensor Actuator Line
IP67 rated circular connectors for Industrial automation applications
- 3, 4, 5, 6, 8 & 12 positions
- Up to 8A per contact
- -30o C to +80o C Temp Range (standard)
- High Temperature Products Available (+125o C)
- Shielded versions
- Food & Beverage IP69K available
- Profibus DP and Device Net
- Field attachable for all versions
Applications: Industrial Automation| Food & Beverage| Automotive| Machine Tool | Power Supply for variety of Devices
For pricing on CONEC's Sensor-Actuator Line, please CLICK HERE or call 800-325-0534. back to the top
Autosplice News...
Compact One-Piece Contacts Optimized for Applications in Mobile Wireless Devices
Autosplice has introduced a new series of compact surface mount contacts for antenna applications in mobile devices such as smartphones and tablets.
The new single-piece contact designs are ideally suited for Near Field Communications (NFC) Antenna requirements as well as other grounding applications within wireless communications designs and are superior to existing two-piece molded products.
Typical existing antenna clips use multi-piece configurations that are manufactured through the assembly of the antenna contact terminal to an injection molded base, with separate fixing pins to support the SMD interface. This approach increases complexity and quality risk, as well as increasing manufacturing costs.
In contrast, the new Autosplice crush-proof antenna clips integrate both the antenna contact and the base into a unified single-piece stamping that improves reliability and reduces cost. Since the entire contact is formed from stamped copper alloy, contact resistance and mechanical stability during vibration are superior to multi-piece designs. In addition, the footprint of the one-piece contacts can be significantly smaller, requiring less PCB space and allowing for overall better fit, form and function.
Autosplice antenna clip products are manufactured from stamped copper alloy material and are available in standard 13" tape and reel for ease of pick and place assembly. The clips are also available in a variety of heights to accommodate specific antenna and product design requirements while minimizing PCB real estate usage.
NFC is a form of contactless communication between devices like smartphones or tablets, which enables a user to wave the smartphone over a NFC compatible device to send information without needing to touch the devices together or go through multiple steps setting up a connection. Fast and convenient, NFC technology is popular in many parts of Europe and Asia, and is quickly spreading throughout the United States. By integrating credit cards, subway tickets, and paper coupons all into one device, NFC enables a user to board a train, pay for groceries, redeem coupons or loyalty points, and exchange contact information all with the wave of a smartphone.
One of the major challenges for integrating NFC into a product is making sure that the antenna will meet the requirements of NFC standards, such as ISO 14443B and NFCForum Type 4 tag compliance. Successful integration depends on precision control of the size, shape, material and positioning of the antenna, along with the need for robust resistance to vibration and shock under a wide range of operating conditions. NFC antenna designers need access to contacts such as the new single-piece Autosplice design that can provide maximum configuration flexibility and reliability while also minimizing cost and size.
The new single-piece antenna clip designs from Autosplice are already being used in leading mobile devices that account for over 300 million contacts per month and are currently being designed into many more NFC-enabled devices because of the inherent cost advantages and manufacturing efficiencies.
For a drawing, CLICK HERE.
For pricing on Autosplice's crush-proof antenna clip, please CLICK HERE or call 800-325-0534.
Fischer News...
Fischer new Minimax Series - New Connectors for Smaller and Higher Performance Devices
The new Fischer MiniMax™ Series(patents pending) increases the performance of your ruggedized devices, handling more mixed signal and power connections in a circular, high density connector designed for portable miniature ruggedized devices. The new Fischer MiniMax™ Series is ideally suited for ruggedized devices designed for handheld or body-worn applications for patient or soldier, instrumentation & test equipments where user-friendliness and easiness to handle are a must.
- High density with 20 signal & 4 power pins
- Ergonomic design for easy handling
- Pre-cabled plugs and pre-wired receptacles
- Salt water spray corrosion resistance: 1,000 hours
- Mechanical and visual coding for improved safety
- IP68, sealing even unmated
- Waterproof 2m/24h
- 5,000 mating cycles
Please visit Kensington Electronic's LinkedIn page for Fischer's Minimax Series to view the Fischer video about the new Minimax Series by clicking HERE.
Free Domestic Ground Shipping on all orders placed before 5/31/2013
Receive free FedEx Ground shipping on all new orders placed for Fischer's Minimax connectors between now and May 31st! For pricing or to receive product information, please CLICK HERE or call 800-325-0534.
JAE News...
JAE is proud to announce their board-to-cable connector for high-speed transmission.
JAE has recently developed the HD Series of connectors for notebook PC LCD interface applications. The HD Series connectors are compatible with LVDS transmission and LED backlight as standardized in the VESA 16:9 Wide Notebook Panel Standard, and are licensed products for the Dai-ichi Seiko Co., Ltd. (I-PEX) Cableline-VS.
Features:
- Products licensed by Dai-ichi Seiko Co., Ltd. (I-PEX)
- Fully compatible with the Dai-ichi Seiko Co., Ltd. (I-PEX) CABLINE®-VS
- Compatible with LVDS (high-speed differential transmission)
- HD1: 40 position (receptacle and plug); HD2: 30 position (receptacle)
- Pb-free and Halogen-free
Note: CABLINE-VS is a registered trademark of Dai-ichi Seiko Co., Ltd. (I-PEX)
For pricing or to receive product information, please CLICK HERE.
back to the top
JAE News...
JAE is proud to release their ST10 microSD™* push-push connector.
The ST10 series are one-piece type external connectors for the microSD™ card. They are high-density, SMT, push-push, standard mounting, low profile connectors compatible with the microSD™ card, standardized by SDA™ (SD Card Association) as a compact card for various portable devices.
- Balanced EMI countermeasure though 4 hole-down points.
- Slim design with 1.25mm height, 13.2mm width and 14.85mm depth (depth including card: 16.75mm)
- Halogen-free product, supplied in embossed tape for automatic mounting (compatible with second reflow)
- Card insertion detection structure (D-SW: Detection switch), Normally open
- Card lock structure.
- 1.0mm push stroke and 3.1mm card eject length.
- Countermeasure to prevent the card from popping out.
Applications:
Devices using microSD™ cards such as mobile phones, smart phones, digital still cameras, etc.
* microSD™ is a trademark of SDA™
Download the product release from JAE by clicking HERE.
Kensington has been a proud partner of JAE's for over 15 years and was JAE's first authorized distributor. Please contact your sales person for samples and pricing. This item will be in stock at Kensington soon.
JAE Electronics, Inc., designs, manufactures and markets electronic connectors and aerospace products. JAE Electronics' parent company, Japan Aviation Electronics Industries, Ltd. (JAE), is a globally oriented supplier of electronic components, fiber optic connectors, LCD monitor connectors, waterproof electrical connectors and other digital systems.
For more information, please email sales@keiconn.com or call 800-325-0534.
back to the top
Autosplice News...
Autosplice expands their shield clip product family with their NEW Compact, Micro and Micro-Miniature Shield Clips.
Autosplice has announced a major expansion of the company's industry-leading Shield Clip product family through the introduction of three new Shield Clip configurations to support the ongoing evolution of smaller, densely packed product designs.
The new Compact, Micro and Micro-Miniature versions offer low-profile heights of less than 0.050 inches, along with reduced pad sizes to accommodate the small form-factor RF shields used in automotive electronics, digital cameras, video games, GPS devices, mobile handsets, set-top boxes, as well as many other consumer electronics, industrial and military applications.
These new offerings continue to deliver all of the significant advantages that are inherent to the Autosplice Shield Clip family, including:
- Eliminates EMI/RFI shield post soldering operations
- Compatible with standard high-speed placement equipment
- Permits easy shield removal and replacement
- Saves valuable PCB real estate
- Utilizes standard vacuum nozzle pick up
- Independent quad finger-spring contacts
- STD EIA 481 tape and reel packaging
- Lead free RoHS compliant base material and plating
Shield Clips can be placed anywhere on the PCB, thereby maximizing design flexibility while conserving PCB real estate. The four independent spring contacts on each clip enable RF shields to be reliably inserted into the completed PCB assembly without the need for secondary soldering processes. The proprietary clip design also allows shield removal and replacement multiple times as needed for easy rework and/or circuit tuning.
With the addition of these three new designs, the full range of Shield Clip configurations currently available from Autosplice, include:
All products in the Shield Clip family are available in stock at Kensington.
For more information, please email sales@keiconn.com or call 800-325-0534.
back to the top
JAE News...
JAE is proud to release their PC2 series Connector.
The PC2 is an external interface connector compatible with the USB 3.0 specification standardized by the USB-IF. Jae's USB 3.0 has the industry's smallest-in-class mounting area, enables 10x faster transmission compared to USB 2.0, is backwards compatible to both USB 1.1 and 2.0 and is available in standard or reverse mount. Download the product release from JAE by clicking HERE.
Kensington has been a proud partner of JAE's for over 15 years and was JAE's first authorized distributor. Please contact your sales person for samples and pricing. This item will be in stock at Kensington soon.
JAE Electronics, Inc., designs, manufactures and markets electronic connectors and aerospace products. JAE Electronics' parent company, Japan Aviation Electronics Industries, Ltd. (JAE), is a globally oriented supplier of electronic components, fiber optic connectors, LCD monitor connectors, waterproof electrical connectors and other digital systems.
For more information, please email sales@keiconn.com or call 800-325-0534.
back to the top
Kensington News...
Kensington Partners with Smiths Interconnect to offer miniature connector in medical market.
Kensington Electronics, Inc., one of the fastest growing distributors of electronic components in the United States, continues to expand its medical offering by signing on as the only official distributor for both Smiths Interconnect' Mini-D and Mini-HG circular connector series.
The Mini D series connector is nearly 30% smaller than Smiths Interconnect D01 series, has 0.30mm Hypertac® high reliability contacts, simple push-button latching, and the distinctive housing provides alignment and polarization.
Both the mini-D and mini-HG connector incorporate the ultra-reliable Hypertac hyperboloid contacts with 0.30mm pins which create a significantly smaller form factor with five-signal contacts rated at 1 Amp each. The design maintains the same reliable electromechanical performance characteristics of all Hypertac contacts: high cycle life, low contact resistance, low insertion and extraction force, resistance to shock and vibration, and superior self-cleaning action, but now meet the industry's increased demands for miniaturization and higher density.
Additionally, the Mini-HG is IP67, Fingerproof to IEC60601, and can be color coded.
The connectors are ideal for use in medical equipment such as monitors, therapeutic devices, imaging applications, and invasive probes. With medical systems becoming smaller, Smiths Interconnect mini connectors allow manufacturers to create smaller devices that offer more comfort and portability for patients.
The product brochures for both the Mini-D and Mini-HG circular connector series can be downloaded below.
Smiths Interconnect Mini D0 series
Smiths Interconnect Mini Hypergrip
For more information, please email sales@keiconn.com or call 800-325-0534.
back to the top
Halo News...
New Series of Miniature Molded SMD Power Inductors & Low Cost, Low Profile SMD Drum Core Inductors
HALO Electronics, Inc. is pleased to announce a new series of miniature molded SMD power inductors. This new HPC series is designed for high efficiency applications such as disc drives, cell phones and other DC/DC filter applications where high current and small size are key. The unique construction offers not only magnetic shielding, but also a smaller footprint compared to similar current rated inductors in the market.
The HPC series is available in 3 different sizes depending on inductance value and current handling capability requirements. The HPC104N series, 11.5mm x 10mm x 4mm, has a current rating of up to 40 amps with an inductance range of 0.22 to 10.0 uH. The DC resistance is available as low as 1.1 milliohm maximum, depending on inductance value. As well thie HPC series is ROHS compliant, lead-free and fully compatible with our customers' lead free solder reflow processes.
HALO Electronics, Inc. is pleased to also present a Low cost, Low Profile SMD Drum Core Inductors. The HDC140 series is ideal for portable equipment such as handheld PDA¬πs, palmtop computers as well as test equipment. The entire HDC series is ROHS compliant and Lead Free.
The catalog page PDF for HALO HPC Shielded Inductors can be downloaded by clicking HERE. The catalog page PDF for the HALO SMD drum-cores can be downloaded by clicking HERE.
For more information, please email sales@keiconn.com or call 800-325-0534.
back to the top
Amphenol News...
Helios h2 Panel Connector a low-power-loss option
Amphenol Industrial has incorporated its trademarked RADSOK (radial socket contact) technology into its latest photovoltaic connector, the Helios h2. VIEW a Slideshare presentation on Amphenol's RADSOK.
According to Amphenol, "RADSOK technology is based on a stamped and formed flat grid, uniquely twisted into a hyperbolic geometry to provide robust, high-density contact to the mating pin contact. Unlike most other pin-and-socket solutions, the RADSOK also utilizes the tensile strength properties of the flat, high-conductivity alloy grid. This provides the high normal forces required for conductivity while also providing a large conductive surface area. Correspondingly, low voltage drop and low temperature rise are achieved while maintaining low insertion forces."
The company says those characteristics make the Helios h2 Panel Connector a low-power-loss option. The connector feeds power from a solar panel to either an inverter or combiner box. According to Amphenol, it complies with requirements of the 2008 National Electrical Code without requiring any additional locking collars or sleeves. Gauge sizes available are 14 AWG (rated at 36 A), 12 AWG (rated at 45 A) and 10 AWG (rated at 52 A).
For more information, please email sales@keiconn.com or call 800-325-0534.
back to the top
Smiths Interconnect News...
Smiths Interconnect Releases New Shielded HyperGrip® Connector
Provides Continuous EMI and RFI Shielding Protection of -50db @3GHz
Smiths Interconnect, a Smiths Interconnect business and world-leading provider of high performance interconnect solutions for the most demanding applications, announced today the release of their new Shielded HyperGrip® connector. More sophisticated medical equipment with increased data transfer rates have given rise to a need for shielded connectors to protect medical interconnect from dangerous signal interruptions caused by EMI and RFI. In addition to its uniquely medical appearance and proprietary features, the Smiths Interconnect Shielded HyperGrip® circular, plastic, push-pull medical connectors series provides continuous shielding through the connector with an attenuation of -50db at 3 GHz.
The Shielded HyperGrip series is ideally suited for operating in sterile hospital environments and embodies the features and functionality required to make certain that the highest level of performance and quality are maintained across key disciplines that include homecare cardiac devices, patient monitoring, imaging, and electrophysiology catheter systems. Recognizing the needs of the medical device community, Smiths Interconnect Corporation has designed Shielded HyperGrip® to be user-configurable, color-coded (5 different colors are available), has front and rear panel mount receptacle design, is finger-proofed, resistant to sterilization protocols and can be keyed to provide true and secure connections on medical devices.
"With Shielded HyperGrip®, Smiths Interconnect has taken a bold step forward in achieving its vision of an innovative, state-of-the-art interconnect solution that addresses the constantly changing landscape of the medical device industry," stated Vadim Radunsky, President of Smiths Interconnect Corporation. "Early feedback from customers who have deployed Shielded HyperGrip® indicates that they are embracing it as an interconnect device that is reliable and easy to work with."
It is important to note that EMI (Electromagnetic Interference) and RFI (Radio Frequency Interference) can cause the degradation of system performance. Smiths Interconnect Shielded HyperGrip® connectors help ensure signal integrity and protect sensitive medical device circuitry from damaging EMI and RFI interference, while providing ultimate performance and an extended service life. They incorporate the ultra-reliable Hypertac contact design technology which outperforms standard interconnect solutions, and provides up to 100,000 contact mating cycles, drastically reducing the cost of ownership.
To read more about this product, please download the Shielded HyperGrip® product catalog in PDF format. Download the PDF here.
For more information, email sales@keiconn.com or call 800-325-0534.
back to the top
CONEC News...
CONEC COMPLETES IP67 SERIES WITH RUGGED USB CONNECTORS
Sealed USB connectors for machine tool, automation, automotive and other extreme environment applications...
CONEC, a manufacturer of high-quality connectors, has expanded its bayonet locking and water-resistant series of connectors with a USB connector compliant with USB2.0 specifications. The new USB connector provides design engineers a highly reliable option for the harshest environments. This connector is part of CONEC's expansive IP67-rated family widely used in industrial production, food/beverage, chemical controllers process, outdoor wireless, Bluetooth adapters, diagnostic and test instruments, oil/gas and factory automation applications.
"The expansion of the USB marketplace and continued growth has significantly impacted the packaging and interfaces of USB connectors," said Peter Persico, technical support specialist at CONEC. "In order to address the harsh environment industry, CONEC expanded its IP67 family to include USB connectors that are robust enough to withstand the most extreme environments."
CONEC's water-resistant USB products feature robust internal components housed in black plastic and nickel-plated zinc die-cast with a bayonet locking termination rated to IEC 61076-3-106 specifications. The interface meets IP67 requirements when a mating connector is inserted or when covered with a secured protective cap. A USB 2.0 plug set is available for the cable side and there are also preassembled patch cords available in various IP protection designs and lengths.
The USB connector contacts are phosphor bronze and gold-plated with a contact resistance rated at a maximum 30m and insulation resistance of 500m. Current ratings are 1.5A maximum at 25°C, and operating temperature ranges from -40°C to +85°C.
The product line includes a variety of panel-mounted receptacles, mating plugs, protective caps, and pre-terminated jumper cables, including jackets suitable for outdoor use. The IP67 USB connectors ensure a continuously secure dust and weatherproof connection, in addition to being sealed for a watertight connection.
For more information, email sales@keiconn.com or call 800-325-0534.
back to the top
Smiths Interconnect News...
KENSINGTON ELECTRONICS ONLY DISTRIBUTOR TO STOCK SMITHS INTERCONNECT MINI D0 SERIES CONNECTORS
Kensington Electronics Inc., continues to expand its connector offering into the medical market by expanding its partnership with Smiths Interconnect to stock the new miniature D series circular plastic connectors. Kensington is the only Smiths Interconnect distributor to carry this product family. The Mini D series connector is nearly 30% smaller than Smiths Interconnect D01 series, has 0.30mm Hypertac® high reliability contacts, simple push-button latching, and the distinctive housing provides alignment and polarization.
Smiths Interconnect' new "mini" connector is designed to be both rugged and versatile in order to meet the increased functionality requirements for today's more advanced systems. The next generation miniature connector is designed to reduce size by nearly 30 percent while providing maximum signal reliability. The D00 mini connector incorporates ultra-reliable Hypertac hyperboloid contacts with ÿ0.30mm pins which create a significantly smaller form factor with five-signal contacts rated at 1 Amp each. The design maintains the same reliable electromechanical performance characteristics of all Hypertac contacts: high cycle life, low contact resistance, low insertion and extraction force, resistance to shock and vibration, and superior self-cleaning action, but now meet the industry's increased demands for miniaturization and higher density.
The mini D Series connector is ideal for use in medical equipment such as monitors, therapeutic devices, imaging applications, and invasive probes. With medical systems becoming smaller, Smiths Interconnect mini connectors allow manufacturers to create smaller devices that offer more comfort and portability for patients.
Download the brochure.
Check availability.
Halo News...
Announcing the industry's SMALLEST Gigabit Ethernet and POE+ Ethernet transformer solutions
Halo Electronics, Inc. is pleased to announce the industry's SMALLEST Gigabit Ethernet and POE+ Ethernet transformer solutions!
Their new GEmini™ and GEmini+™ reduce the transformer real estate required by up to 50%! Both the GEmini™ and GEmini+™ are available in both commercial and industrial temperature ranges. The GEmini™ and GEmini+™ series are UL60950, EN60950 and DEMKO recognized for SELV to TNV-1 applications and meet the requirements of IEEE802.3 for 10/100 and Gigabit. The GEmini™ is the perfect solution for small appliances such as VoIP telephones, cameras, and wireless base stations. The GEmini+™ is the perfect solution for high power small appliances.
Both the GEmini™ and GEmini+™ series are proprietary products requiring a Non-Disclosure Agreement (NDA) be signed prior to receiving spec sheets and/or samples. For Halo's NDA, please click HERE.
Fill out the NDA and return to sales@keiconn.com to receive more information.
back to the top
Smiths Interconnect Announces Miniature Circular Connectors:
Reduces Form Factor by 30%, Maximizes Pin Count
These next generation miniature connectors are designed to reduce the size by nearly 30%, while still providing maximum signal reliability. The new "mini" connector is a product extension of Smiths Interconnect popular circular push-button D Series connector design. As the demand across industries increase for miniaturization, the company plans include the launch of additional miniature products including HyperGrip®, Smiths Interconnect standard medical circular connector design.
The Smiths Interconnect mini connectors incorporate the ultra reliable Hypertac® hyperboloid contact in a smaller 0.3 mm pin size, creating a significantly smaller form factor while maintaining 5 signal contacts rated at 1A each, with a dielectric withstanding voltage rating of 750V. The new design maintains the same reliable electromechanical performance characteristics of all Hypertac contacts: high cycle life, low contact resistance, low insertion/extraction force and resistance to shock & vibration but now meet industry's increased demands for miniaturization and higher density.
"Industry trends towards product miniaturization and product integration are more significant than ever as manufacturers continue to create more sophisticated products with higher levels of data acquisition and signal processing," states Vadim Radunsky, President, Smiths Interconnect. "The new mini connector series is designed to be both rugged and versatile in order to meet the increased functionality requirements for today's more advanced systems."
The easy-to-assemble mini D series incorporates the familiar push-button latch for simple operation while alignment and polarization are provided by the distinctive housing design. The plugs are available with crimp termination, which can also be soldered, accommodating up to 24 AWG wire. The receptacles will be available with 6 inch [15.24mm] pigtails as standard with optional custom lengths and board terminations available.
The mini D series product is used in medical equipment such as monitors, therapeutic devices, imaging, and invasive probes. With the size of medical systems becoming smaller, the miniatures will offer the ability to create an overall smaller device that results in more comfort and portability for patients.
To view the Mini D series Product information Sheet, click HERE
The mini D series is in stock now, only at Kensington Electronics. Call your Kensington sales representative to order HTT Series contacts.
back to the top
Staubli/Multi-Contact Solar
In Stock NOW - Solarline 1 and Solarline 2 Connectors!
Custom Made & Available SAME DAY!
As Multi-Contact's first and only U.S. franchised distributor, Kensington has been helping PV customers with their Solar connector, cable, and assembly needs for over a decade.
Kensington stocks the Generation 1/Type 3 series (PV-KBT3 I, PV-KST3 I, PV-KBT3 II, PV-KST3 II) and Generation 2/Type 4 series (PV-KBT4/6I,PV-KBT4/6II, PV-KST4/6I, PV-KST4/6II) as well as tens of thousands of feet of both the 10AWG and 12AWG, USE-2 cable. Kensington has a fully staffed, automated production facility dedicated to solar cable assemblies. We can cut your wire to any length and customize it by sourcing and adding whatever connector or cable gland your design calls out for.
And, we build right here in the U.S.A.!
For a quote, please contact your Kensington sales representative.
back to the top
Sealed Industrial Ethernet
IP67 RJ45 Connector Cable Assemblies in Custom Lengths and Colors
RELIABLE CONNECTIONS IN HARSH ENVIRONMENTS!
CUSTOM MADE TO ORDER IN JUST DAYS!
Features:
- Meets EIA/EIA-568B.2 Cat. 5e specification
- Meets IEC60603-3-7-3 & IEC 61076-3-106 standard
- IP67 and NEMA 6&6P rated when mated
- Available in plastic, metallized plastic and die-cast versions
- Accepts both solid and stranded cable
- Field installable
- Polarized key for blind mating
- Easy and fast bayonet locking mechanism
- RoHS compliant
For a quote, please contact your Kensington sales representative.
back to the top
Kensington Partners with Autosplice...
Faster Assembly and Greater Flexibility for EMI/RFI Shields
Kensington Electronics is proud to partner with Autosplice to stock their shield clips. Autosplice surface mount shield clips are a cost-effective alternative to hand soldering.
EMI/RFI shield placement to a PCB without post soldering is now possible. Autosplice Surface Mount Shield Clips are a cost-effective alternative to hand soldering. The miniaturizing design allows for tape and reel packaging compatible with standard high-speed placement equipment. RFI Shield Clips can be placed anywhere on the PCB, eliminating the need for extra holes and saving valuable PCB real estate. Equipped with four independent spring contacts, the reliable RFI Shield Clips allow for shield removal and replacement for rework and/or circuit tuning.
RFI Shield Clip features and benefits:
- Eliminates EMI/RFI shield post soldering operations
- Is compatible with standard high-speed placement
- Permits easy shield removal/replacement
- Saves valuable PCB real estate
- Utilizes standard top pick vacuum nozzle
- Has independent quad finger spring contacts
For more information, please visit Autosplice online by clicking HERE.
For a free sample kit click HERE.
back to the top
Kensington News...
Kensington Electronics is now stocking Pro-Tek5 Systems products through our partnership with Halo Electronics.
Pro-Tek5 Systems, Ltd. is dedicated to providing leading edge products for protecting and enhancing Ethernet cabling systems.
Pro-Tek5's initial product offering includes 4.5KV isolation data modules and GR1089 lightning strike and static discharge modules. These devices are designed to be installed "in-line" on the existing twisted pair cables for ease of installation by the network installer or personal user of Ethernet networks.
The Pro-Tek5 Systems products are designed for Military, Medical, critical network servers other high reliability Ethernet Equipment applications. The Pro-Tek5 products protect systems from high voltage and hazardous lightning strike events. These in-line products are real estate efficient, and easy to implement providing the highest level of protection in any CAT5 cabling system.
Pro-Tek5's mission is to provide the industry's most robust protection to the Ethernet network while maintaining IEEE802.3 compliance enabling full cable distance communication. This is achieved through proprietary "State of the Art" designs offering the best performance while providing the desired protection.
5KV Isolator
The Pro-Tek5 Systems Isolator affords a convenient method of creating 5KV isolation to equipment located in an Ethernet cabling system. The Pro-Tek5 Systems Isolator provides IEEE802.3 compliant return loss and insertion loss performance while meeting the most stringent isolation requirements. Reinforced insulation is used to achieve a high level of isolation for applications with working voltages up to 300V.
Lightning Strike Protector
The Pro-Tek5 Systems lightning strike protector provides differential protection to each of the data pairs in an easy-to-uuse, in-line design,
attached to an Ethernet network. The Pro-Tek5 Systems lightning strike protector series has been designed with extremely low capacitance protection enabling full IEEE802.3 compliant transmit and receive communication distances.
Smiths Interconnect News...
PC/104+ Connectors - PCI-104 Style Architecture, Stackable Connector
- 2mm centerline, 4x30 contact grid (120 total contact positions)
- Up to 1A per contact
- Insulator meets NASA outgassing specifications
- Designed for ruggedized applications
- Contact tails incorporate a unique cross-section which allows for both press-fit and solder terminations
- System is both compliant and compatible with the industry standard PCI-104 bus
- Meets proposed SPACE-104 standards
- 4 contact row mixed signal, power and coaxial connectors
- High density (pitch .075") with up to 400 signal contacts
- Ruggedized metal shell, with shrouded plug for pin protection
- Large choice of terminations
- Space approved to ESCC 3401 065
Halo News...
A New Discrete Solution for 10/100 and Gigabit Ethernet Applications
- 40% reduction in real estate compared to traditional multi-port solutions
- The Universal Circuit
- 10/100
- 10/100 w/POE
- Gigabit
- Gigabit w/POE
- Symmetrical design allows for easy rotation of the transformer providing EMC performance options without the need for a costly board spin
- Ask us about P/N TG111-S212NWRL
